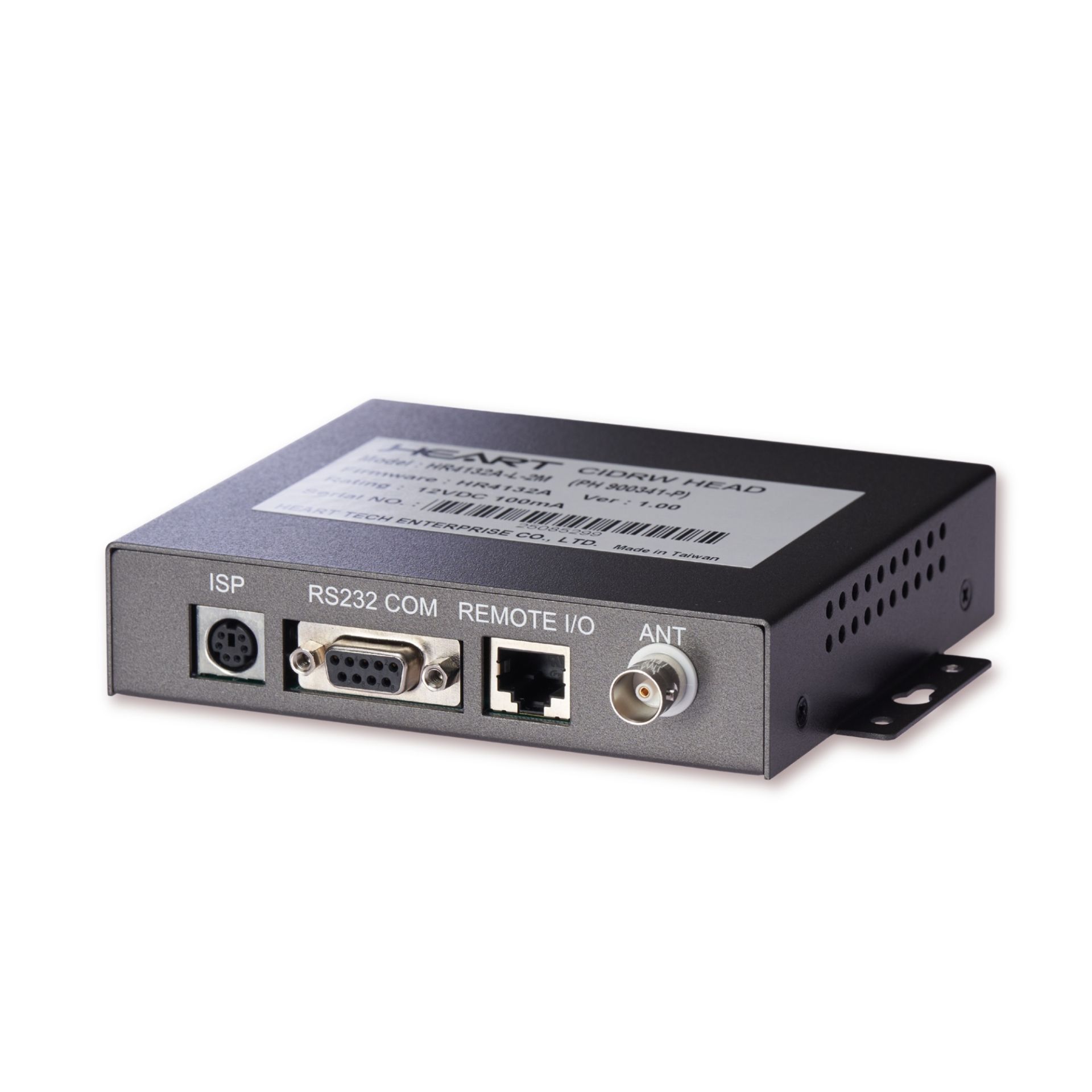

HR4132A Industrial-RFID Reader Controller for RFID TIRIS Proximity Tag
Product Number：HR4132AHR4132A Industrial RFID Reader/Writer
Supports DC 10–30 V voltage range, typical frequency 134.2 kHz (FSK), compatible with TIRIS tags.
Built-in RS-232C interface, 9600 bps asynchronous communication.
Suitable for various industrial applications, offering high reliability and durability.
Operating temperature: −10 °C to +70 °C.
-
Power supply: DC 10 ~ 24V, low power consumption (50mA average, 160mA peak)
-
Frequency: 134.2KHz / FSK, supports TIRIS Tag
-
Environmental adaptability: operating temperature -10 ~ +70℃, humidity resistance, high reliability
-
Communication interface: RS-232C, 9600bps asynchronous transmission, maximum transmission distance of 15m
-
Structure: Weight 430g, Dimensions 147×110×28 mm, Fixed with M4 screws
General Specifications
| Characteristic | Specification |
| Supply Voltage Range | DC 10 ~ 24V |
| Current consumption @12VDC | Average 50mA ; Peak 160mA |
| Transmitting Radio Frequency | Typical 134.2KHz / FSK |
| Transponder Type | TIRIS Tag |
| Operating ambient temperature | -10 ~ +70℃ (No freezing) |
| Operating ambient humidity | 10 ~ 85% RH (No dew condensation) |
| Storage ambient temperature | -20 ~ +85℃ (No freezing) |
| Storage ambient humidity | 5 ~ 95% RH (No dew condensation) |
| Communication interface | RS-232C |
| Weight | 430g MAX. |
| Dimensions | 147 × 110 × 28 mm (Except for connector protrusions) |
| Mounting system | Secured with four M4 screws (with enclosed washers) |
Communication Interface Specification
| Characteristic | Specifications |
| Communication standard | RS-232C |
| Synchronization | Asynchronous mode, start-stop synchronization |
| Baud rate (fixed) | 9600 bps |
| Communications control standard | PLC ASCII |
| Total cable length | 15 m Max |
