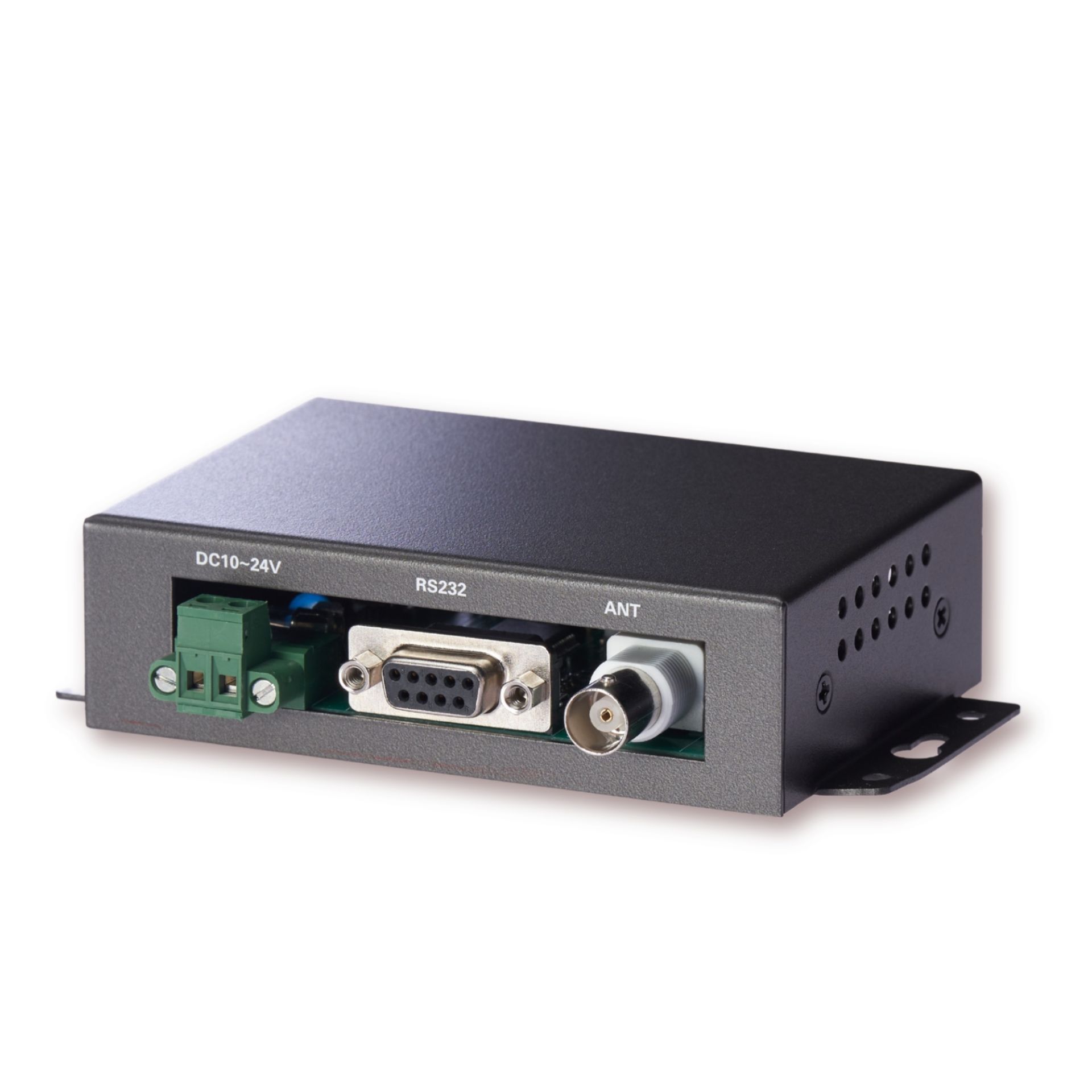

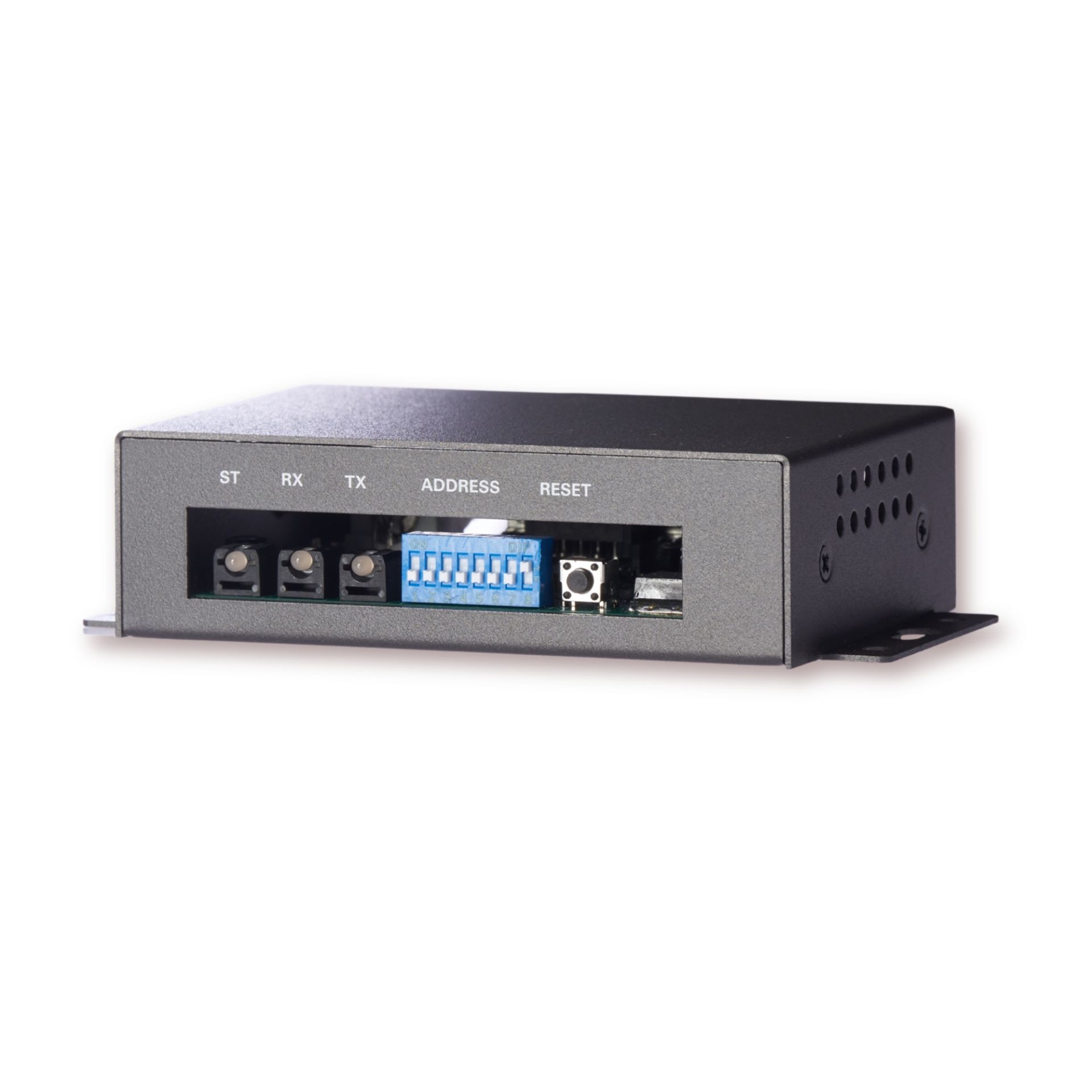

HR4132S 工業級 RFID 讀取控制器 TIRIS PROXIMITY TAG
Product Number：HR4132SHR4132S RFID Proximity Tag CIDRW 控制器，支援 DC 10~24V 電源輸入，頻率 134.2KHz FSK，適用於 TIRIS 單頁與多頁標籤。具備 RS-232C 通訊介面，9600bps 固定傳輸率，9-pin D-SUB 接頭設計，最大傳輸距離 15 公尺。體積小巧（128×83×31 mm），重量僅 290g，適用於工業自動化與資產追蹤應用
-
-
Power supply: DC 10~24V, low power consumption (50mA average, 160mA peak)
-
Frequency: 134.2KHz FSK, supports TIRIS single-page and multi-page labels
-
Environment: Operating temperature -10 ~ +70℃, humidity resistance up to 85% RH, suitable for industrial environment
-
Communication: RS-232C, 9600bps fixed, supports PLC ASCII protocol
-
Structure: 9-pin D-SUB connector, weight 290g, small design, M4 screw fixing
-
Applications: Industrial automation, asset tracking, logistics management, access control systems
-
General Specifications
| Characteristic | Specifications | Comment |
| Supply Voltage Range | DC 10 ~ 24V | Supplied from the power terminals |
| Current consumption @12VDC | Average 50mA ; Peak 160mA | Approx. 2A max, with rush current |
| Transmitting Radio Frequency | Typical 134.2KHz | FSK |
| Transponder Type | TIRIS Tag | Single & Multi page Transponder |
| Operating ambient temperature | -10 ~ +70℃ | No freezing |
| Operating ambient humidity | 10 ~ 85% RH | No dew condensation |
| Storage ambient temperature | -20 ~ +85℃ | No freezing |
| Storage ambient humidity | 5 ~ 95% RH | No dew condensation |
| Communication interface | RS-232C | 9600 bps (fixed), E.8.1 (fixed) |
| Weight | 290g MAX. | No freezing |
| Dimensions | 128 × 83 × 31 mm | Except for protrusions on connectors |
| Mounting system | Secured with four M4 screws | Use the enclosed washers |
Communication Interface Specification
| Characteristic | Specifications |
| Connector specification | 9-pin D-SUB female type connector plug, with 4-40 UNC lock screws |
| Communication standard | RS-232C |
| Synchronization | Asynchronous mode, start-stop synchronization |
| Communications control standard | PLC ASCII protocol |
| Total cable length | 15 m Max |
