HR4138S 工業級 RFID 讀取控制器 TIRIS Proximity Tag
Product Number：HR4138SHR4138S RFID Proximity Tag CIDRW 控制器，專為工業自動化、資產管理及半導體應用設計，支援 DC 10~24V 電源輸入，典型頻率 134.2KHz FSK，適用於 TIRIS 單頁與多頁標籤。具備 RS-232C 或 RS-485 通訊介面，內建 SEMI SECS 協定，傳輸率 9600bps，支援長距離通訊（最高 1000m）。小巧耐用（128×91×31 mm），重量僅 320g。
Power supply: DC 10~24V, low power consumption (60mA average, 160mA peak)
• Frequency: 134.2KHZ FSK, supports TIRIS single-page and multi-page labels
• Environment: Operating temperature -10 - +70°C, humidity resistance up to 85% RH, suitable for industrial environments
• Communication: RS-232C / RS-485, 9600bps (fixed), SEMI SECS protocol, transmission distance up to 1000 meters
• Construction: Weight 320g, Dimensions 128x91x31 mm, Sturdy mounting design (M4 screws)
• Applications: Industrial automation, semiconductor manufacturing, asset tracking, access control
General Specifications
| Characteristic | Specification | Comment |

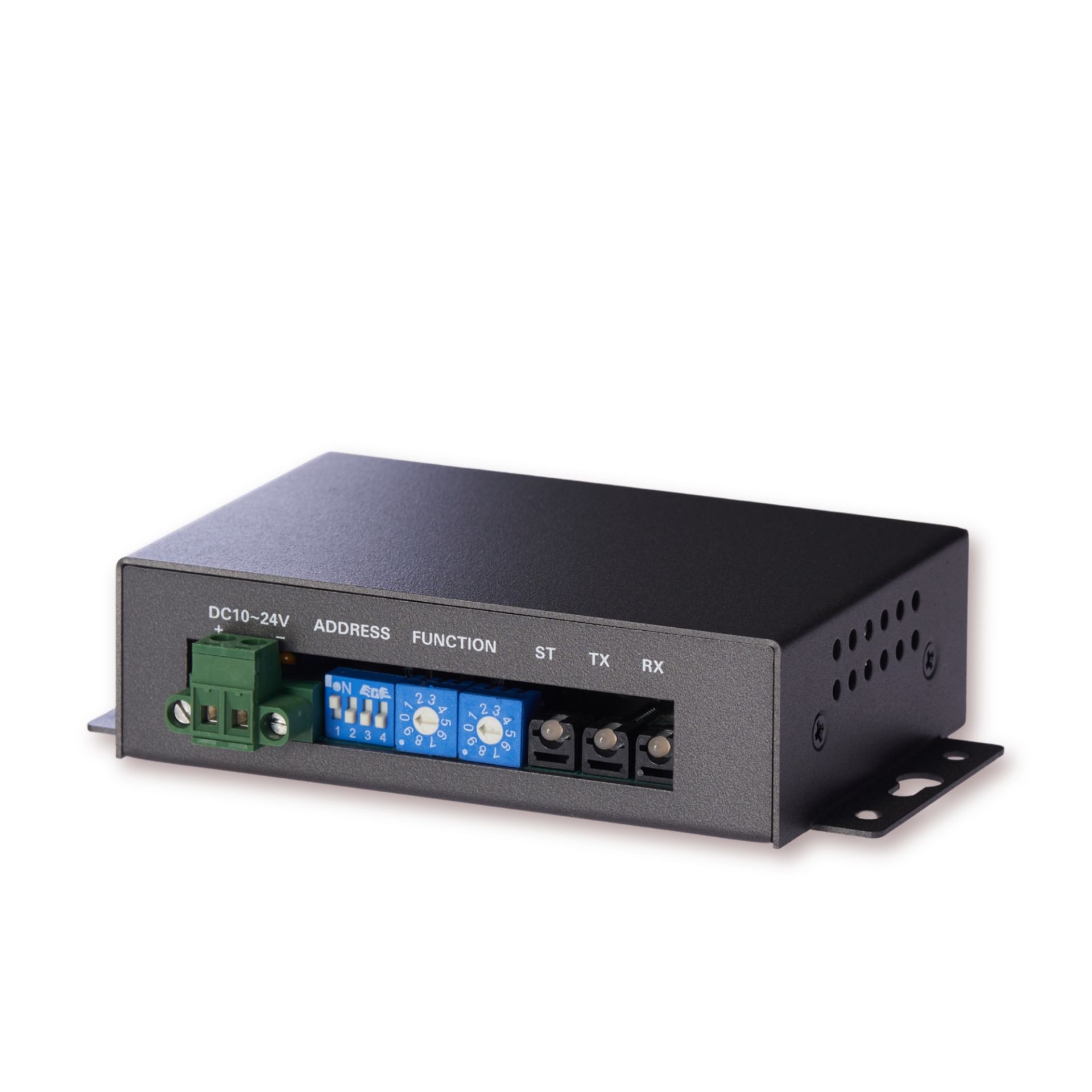

| Supply Voltage Range | DC 10 ~ 24V | Supplied from the power terminals |
| Current consumption @12VDC | Average 60mA ; Peak 160mA | Approx. 2A max, with rush current |
| Transmitting Radio Frequency | Typical 134.2KHz | FSK |
| Transponder Type | TIRIS Tag | Single & Multi page Transponder |
| Operating ambient temperature | -10 ~ +70°C | No freezing |
| Operating ambient humidity | 10 ~ 85% RH | No dew condensation |
| Storage ambient temperature | -20 ~ +85°C | No freezing |
| Storage ambient humidity | 5 ~ 95% RH | No dew condensation |
| Communication interface | RS-232C or RS-485 | 9600 bps (Default), N.8.1 (fixed) |
| Weight | 320g MAX. | No freezing |
| Dimensions | 128 × 91 × 31 mm | Except for protrusions on connectors |
| Mounting system | Secured with two M4 screws | Use the enclosed washers |
Communication Interface Specification
| Characteristic | Specifications |

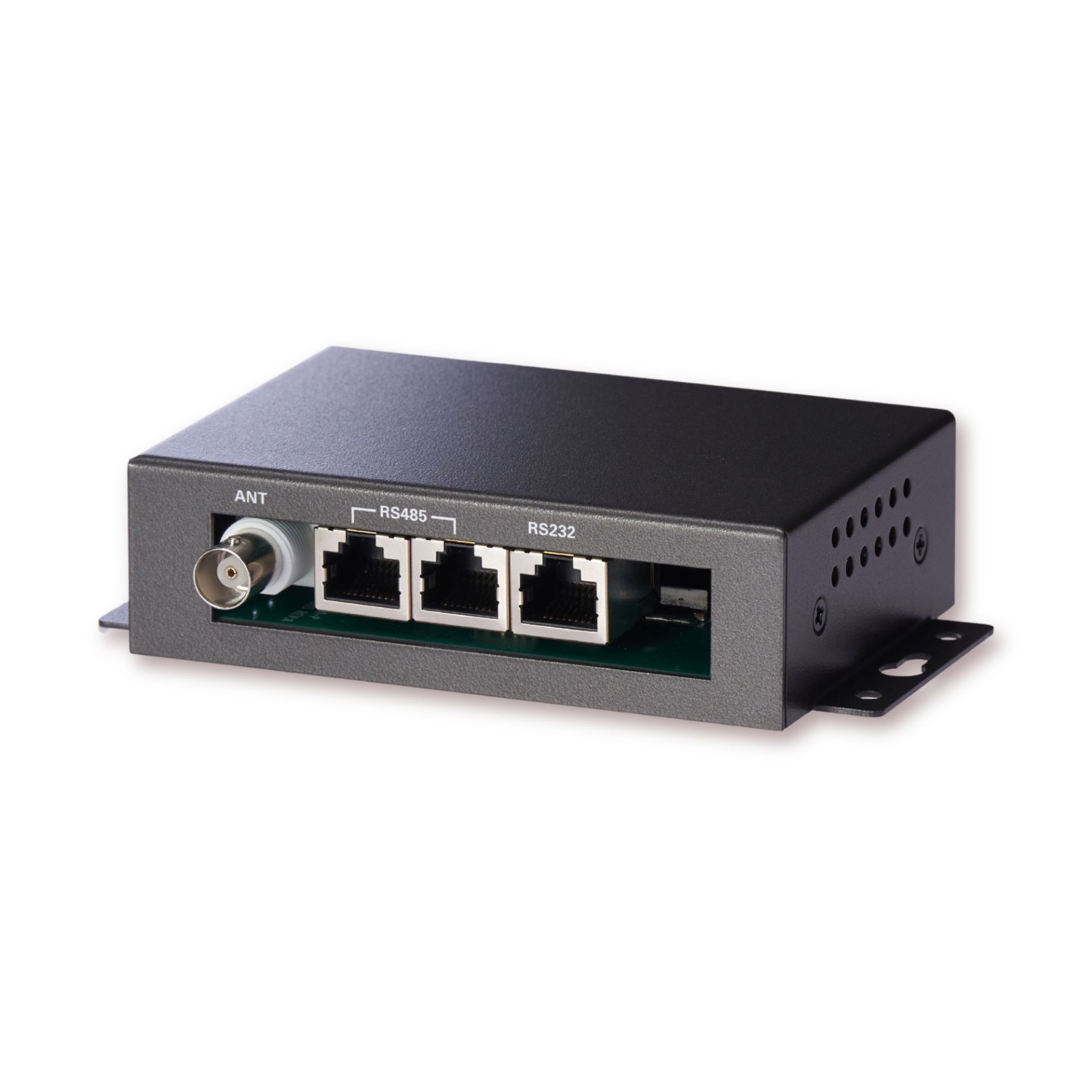

| Connector specification | RJ45 connector plug |
| Communication standard | RS-232C or RS-485 (only for use with HR4135S GateWay Controller) |
| Synchronization | Asynchronous mode, start-stop synchronization |
| Communications control standard | SEMI SECS protocol |
| Total cable length | RS-232C: 15 m Max. RS-485: From HR4135S to last HR4136S, 1000 m Max. |
