DEX110
Product Number：DEX110Crystal Series – Door Release Button(American Standard)
- Touchless Exit: Utilizes touchless sensing technology, allowing the door to be activated by simply bringing a hand near the sensing area without physical contact.
- Responsive Sensing: Features a sensing distance of approximately 5–15 cm, allowing easy door activation with a simple hand wave.

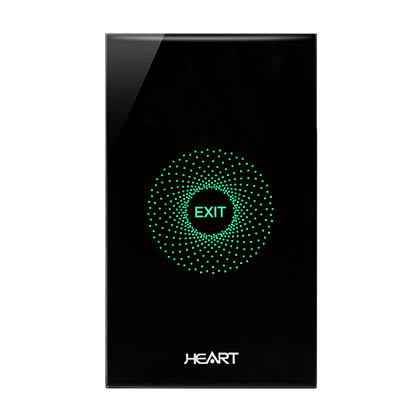

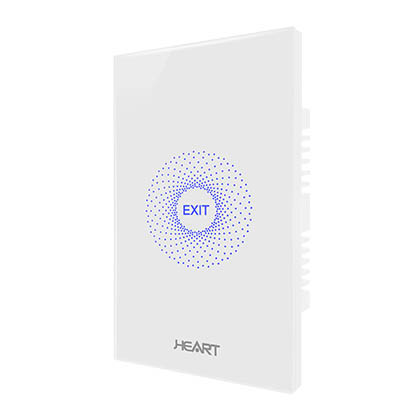

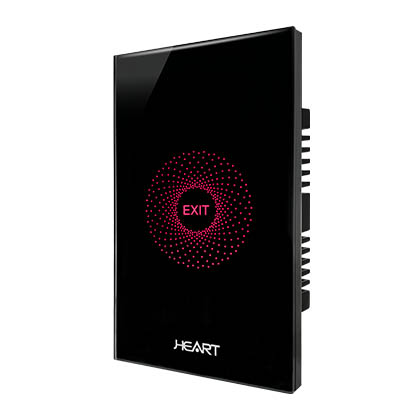

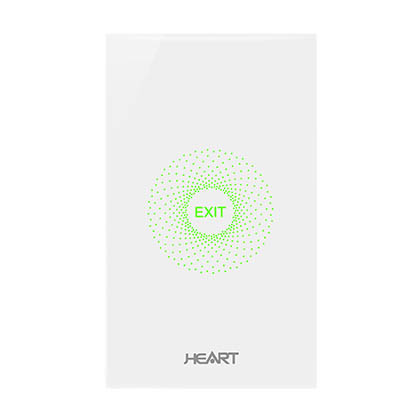

- Dual-Color LED Indicator: Equipped with a dual-color LED indicator, displaying blue or red in standby mode and green when the door is activated.
- Flush-Mount Installation: Designed for flush-mount installation with a clean and streamlined appearance suitable for modern environments.
- Access Control Integration: Can be used with magnetic locks and access control devices for door release control at access points.
General Specifications
| Characteristic | Specification | Description |
| Operating Voltage | DC12V | |
| Current Consumption | 0.2A Max. @ DC 12V | |
| Relay | 1 set | |
| Operating Temperature | 0 ~ 50°C | |
| Operating Humidity | 5 ~ 95% (No Condensation) | |
| LED Indicator | Dual-Color LED | Standby: Blue or Red / Door Open: Green |
| Housing Material | ABS | |
| Dimensions (L × W × H) | 72 × 120 × 24 mm | Exposed dimensions after flush mounting: 72 × 120 × 9.6 mm |
