HA6635

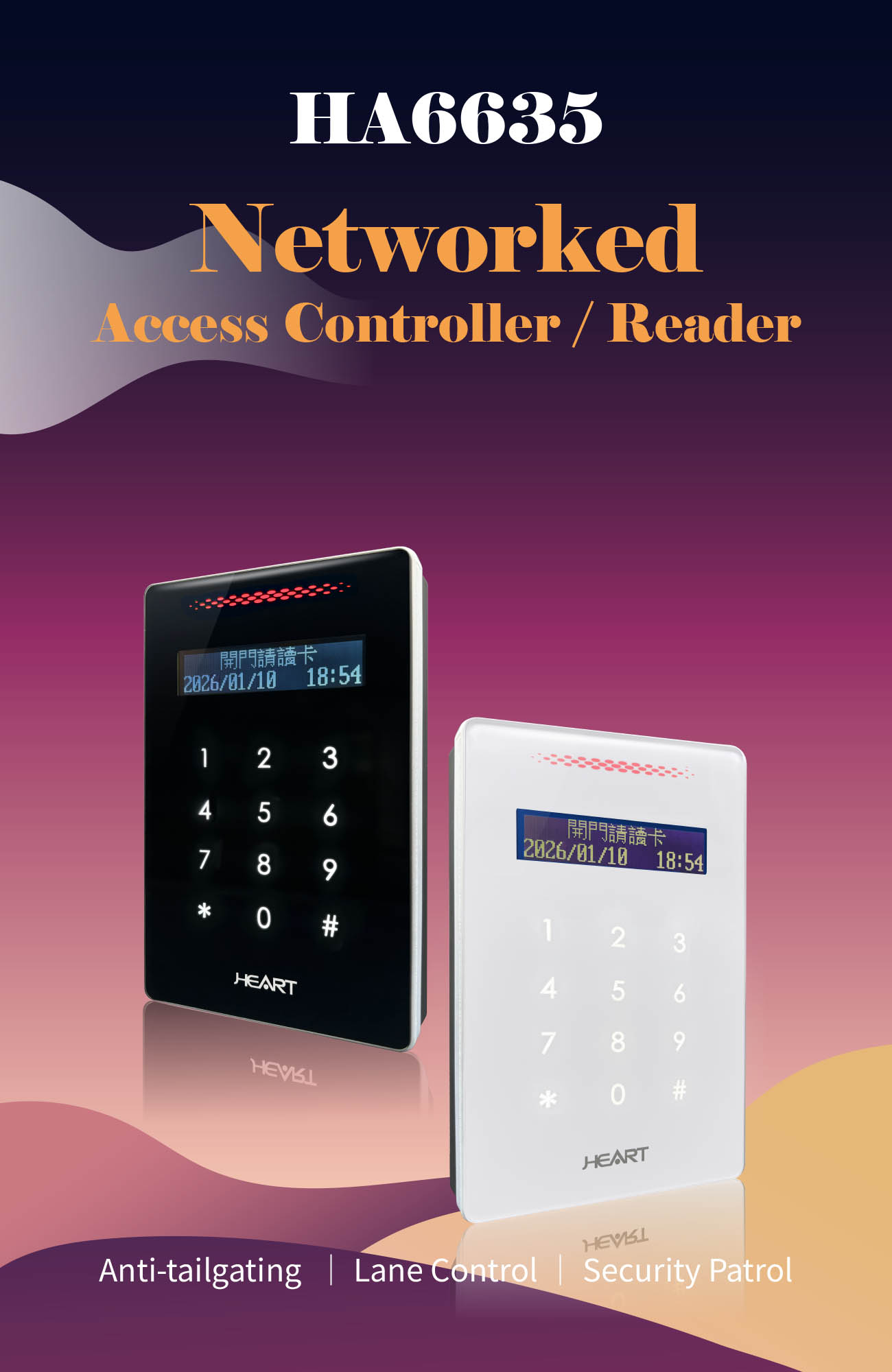

Product Number：HA6635The HA6635 Network Access Controller provides reliable network-based access control with support for Ethernet and RS485 communication. It supports MIFARE cards, visitor card management, time scheduling, Anti-Passback, and event logging, while allowing integration with various external devices. Designed for office buildings, parking facilities, and a wide range of access control applications, it offers flexible deployment to meet different operational requirements.

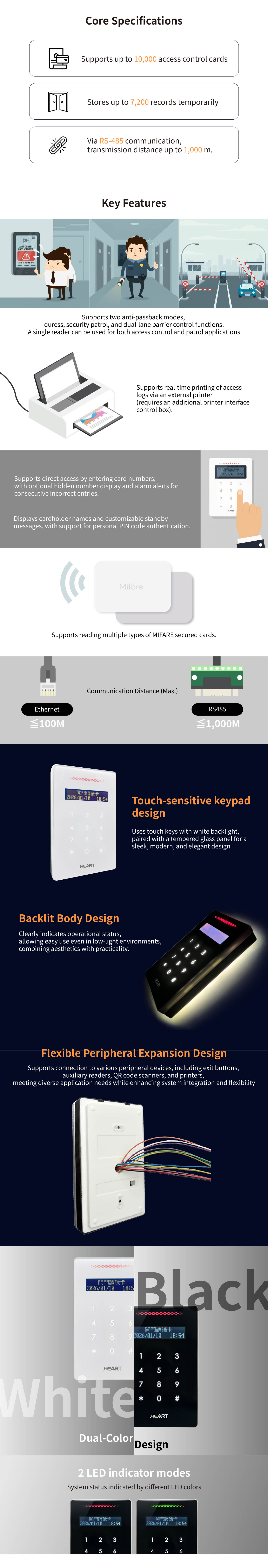

- Outstanding Storage Capacity: Supports up to 10,000 authorized cards and can store 7,200 access event records.
- Multiple Authentication & Card Support: Supports various Mifare encrypted cards and visitor card functions, with built-in duress PIN capability.
- Convenient Door Access Methods: Supports direct card number entry for door access, providing flexible access options.
- Advanced Security Control: Built-in dual-lane gate control and security patrol functions, with two Anti-passback control modes to effectively prevent unauthorized tailgating.
- Flexible Time Schedule Management: Provides independent time zones for 7 days of the week with up to 8 access time periods per day, supporting holiday control and temporary access suspension.
- Rich Expansion Interfaces: Equipped with 3 DI inputs (exit button, door contact, emergency release) and 2 DO outputs (electric lock, alarm), and supports Ethernet or RS485 communication interfaces.
General Specifications
| Characteristic | Specification | Description |
| Input Voltage | DC +10 ~ 15V | |
| Current Consumption | 280mA max. @ DC12V | |
| Valid Card Capacity | 10,000 cards | |
| Event Log Capacity | 7,200 records | |
| LED Indicators | Status LED (Green, Red) / Keypad (White) | Indicator colors vary according to system status |
| Communication Interface | Ethernet or RS485 (select one) | |
| Maximum Communication Distance | Ethernet ≤ 100 m / RS485 bus ≤ 1000 m (1093.61 yd) | |
| Operating Temperature | 0 ~ 50°C | |
| Operating Humidity | 5 ~ 95% | |
| Dimensions (L × W × H) | 146 × 92 × 30.5 mm | |
| Alarm Functions | Supported | Tamper alarm, forced entry/exit alarm, door-open timeout alarm |
| Language Support | Traditional Chinese / Simplified Chinese / English | |
| Backup Battery | CR2032 battery | Maintains RTC operation for approximately 60 days during power outage |
| Time Schedule Control | Supports access schedules, holidays, and validity dates | |
| External Devices | Exit button, secondary reader, QR code reader, printer | Built-in keypad reader can function as a secondary reader; supports real-time log printing (printer interface controller required) |
