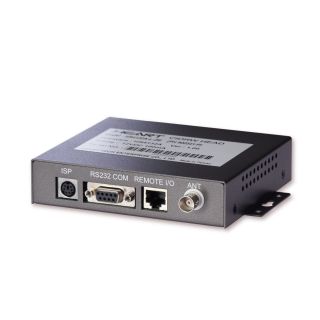

HR4132A 工業級 RFID 讀取控制器 RFID TIRIS Proximity Tag
商品編號：HR4132AHR4132A 工業級 RFID 讀寫器，支援 DC 10~30V 電壓範圍，典型頻率 134.2KHz / FSK，搭配 TIRIS 標籤。內建 RS-232C 通訊介面，9600bps 異步傳輸，適用於各類工業應用，具備高可靠性與耐用性，操作溫度範圍 -10℃ 至 +70℃。
-
電源：DC 10 ~ 24V，低耗電（50mA 平均，160mA 峰值）
-
頻率：134.2KHz / FSK，支援 TIRIS Tag
-
環境適應：操作溫度 -10 ~ +70℃，耐濕度，高可靠性
-
通訊介面：RS-232C，9600bps 異步傳輸，最大 15m 傳輸距離
-
結構：重量 430g，尺寸 147×110×28 mm，M4 螺絲固定
產品一般規格 (General Specifications)
| Characteristic | Specification |
| Supply Voltage Range | DC 10 ~ 24V |
| Current consumption @12VDC | Average 50mA ; Peak 160mA |
| Transmitting Radio Frequency | Typical 134.2KHz / FSK |
| Transponder Type | TIRIS Tag |
| Operating ambient temperature | -10 ~ +70℃ (No freezing) |
| Operating ambient humidity | 10 ~ 85% RH (No dew condensation) |
| Storage ambient temperature | -20 ~ +85℃ (No freezing) |
| Storage ambient humidity | 5 ~ 95% RH (No dew condensation) |
| Communication interface | RS-232C |
| Weight | 430g MAX. |
| Dimensions | 147 × 110 × 28 mm (Except for connector protrusions) |
| Mounting system | Secured with four M4 screws (with enclosed washers) |
通信介面規格 Communication Interface Specification
| Characteristic | Specifications |
| Communication standard | RS-232C |
| Synchronization | Asynchronous mode, start-stop synchronization |
| Baud rate (fixed) | 9600 bps |
| Communications control standard | PLC ASCII |
| Total cable length | 15 m Max. |
