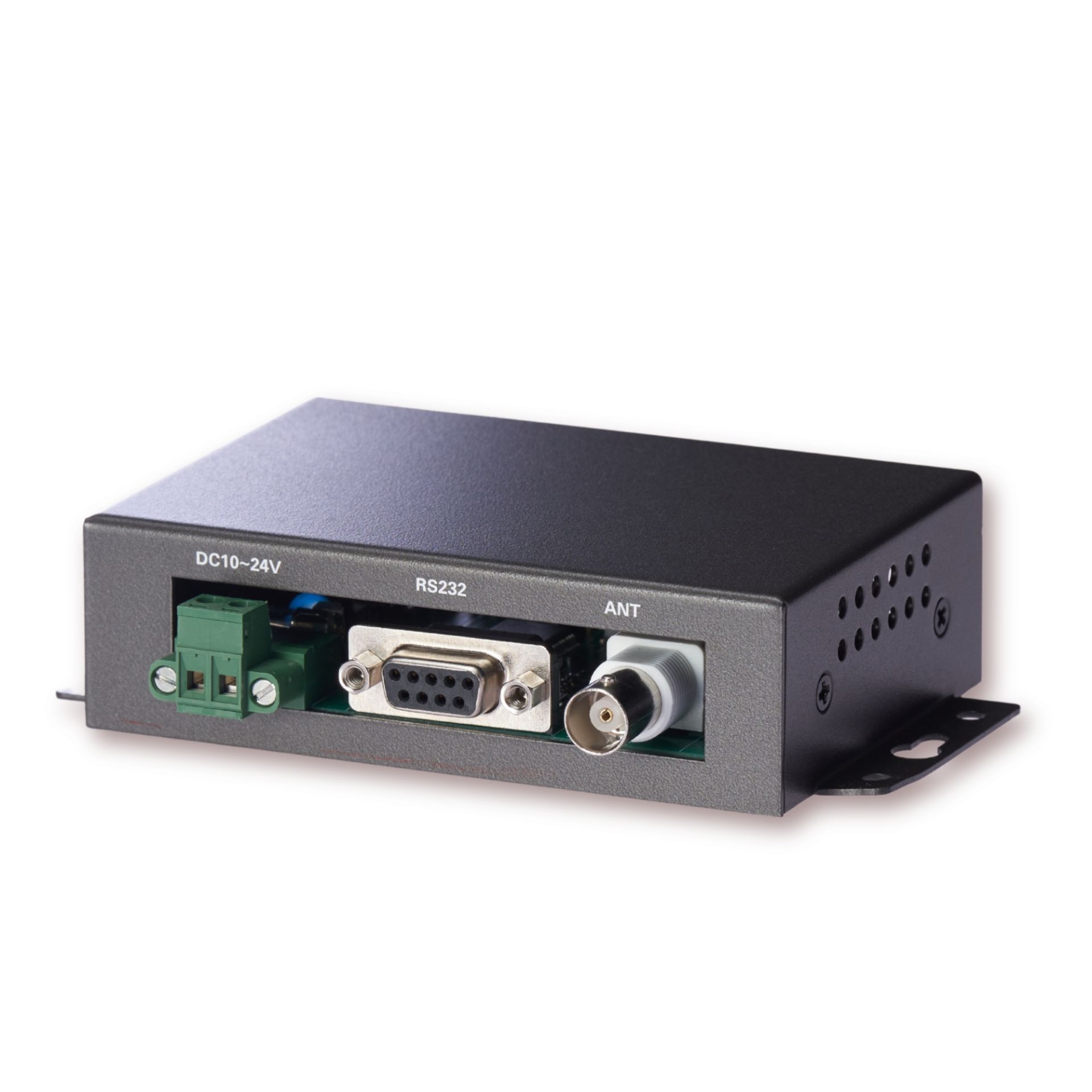

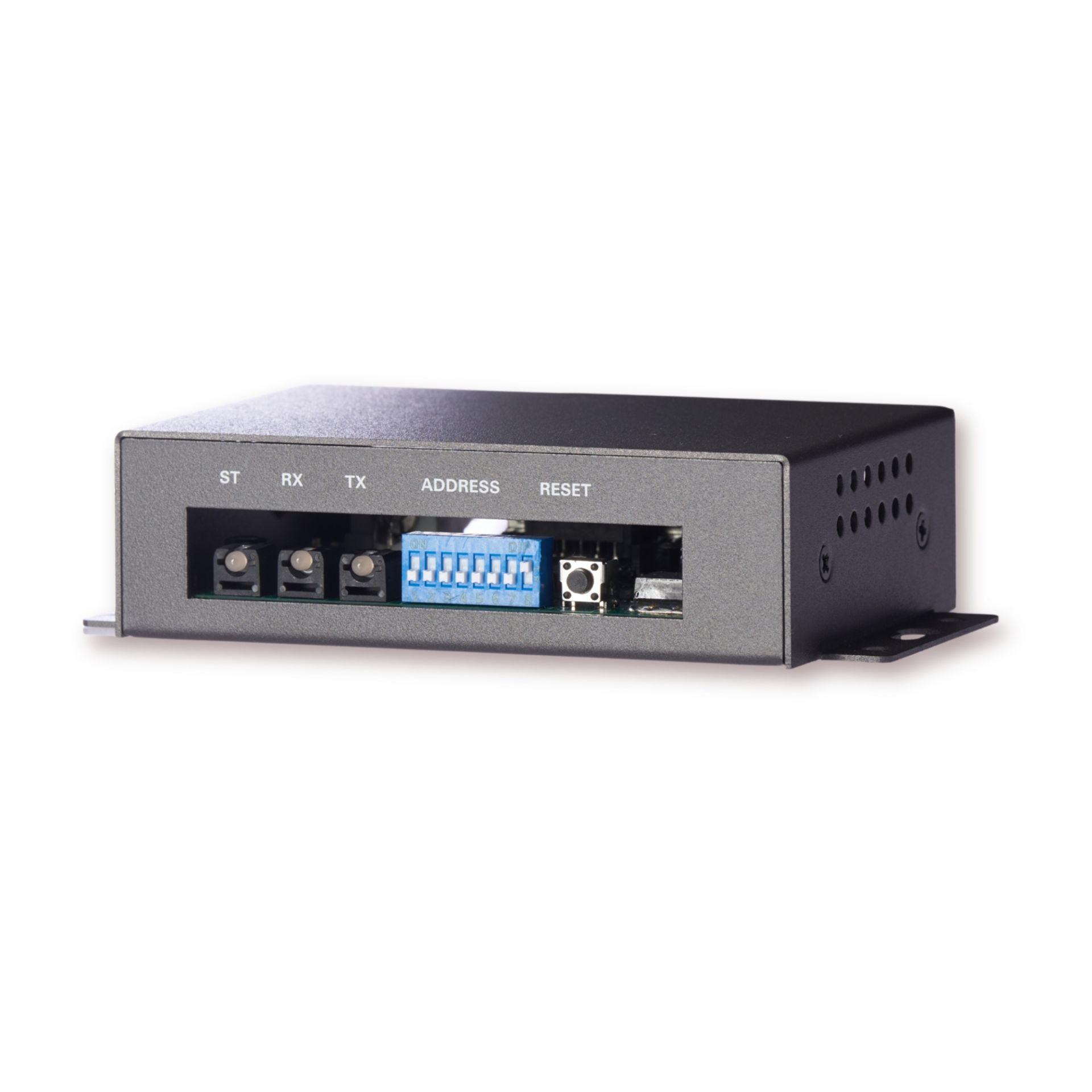

HR4132S 工業級 RFID 讀取控制器 TIRIS PROXIMITY TAG
商品編號：HR4132SHR4132S RFID Proximity Tag CIDRW 控制器，支援 DC 10~24V 電源輸入，頻率 134.2KHz FSK，適用於 TIRIS 單頁與多頁標籤。具備 RS-232C 通訊介面，9600bps 固定傳輸率，9-pin D-SUB 接頭設計，最大傳輸距離 15 公尺。體積小巧（128×83×31 mm），重量僅 290g，適用於工業自動化與資產追蹤應用
-
電源：DC 10~24V，低耗電（50mA 平均，160mA 峰值）
-
頻率：134.2KHz FSK，支援 TIRIS 單頁與多頁標籤
-
環境：操作溫度 -10 ~ +70℃，耐濕度最高 85% RH，適合工業環境
-
通訊：RS-232C，9600bps 固定，支援 PLC ASCII 協定
-
結構：9-pin D-SUB 接頭，重量 290g，小型設計，M4 螺絲固定
-
應用：工業自動化、資產追蹤、物流管理、門禁系統
產品一般規格 General Specifications
| Characteristic | Specifications | Comment |
| Supply Voltage Range | DC 10 ~ 24V | Supplied from the power terminals |
| Current consumption @12VDC | Average 50mA ; Peak 160mA | Approx. 2A max, with rush current |
| Transmitting Radio Frequency | Typical 134.2KHz | FSK |
| Transponder Type | TIRIS Tag | Single & Multi page Transponder |
| Operating ambient temperature | -10 ~ +70℃ | No freezing |
| Operating ambient humidity | 10 ~ 85% RH | No dew condensation |
| Storage ambient temperature | -20 ~ +85℃ | No freezing |
| Storage ambient humidity | 5 ~ 95% RH | No dew condensation |
| Communication interface | RS-232C | 9600 bps (fixed), E.8.1 (fixed) |
| Weight | 290g MAX. | No freezing |
| Dimensions | 128 × 83 × 31 mm | Except for protrusions on connectors |
| Mounting system | Secured with four M4 screws | Use the enclosed washers |
通信介面規格 Communication Interface Specification
| Characteristic | Specifications |
| Connector specification | 9-pin D-SUB female type connector plug, with 4-40 UNC lock screws |
| Communication standard | RS-232C |
| Synchronization | Asynchronous mode, start-stop synchronization |
| Communications control standard | PLC ASCII protocol |
| Total cable length | 15 m Max. |
