HR4138S 工業級 RFID 讀取控制器 TIRIS Proximity Tag
商品編號：HR4138SHR4138S RFID Proximity Tag CIDRW 控制器，專為工業自動化、資產管理及半導體應用設計，支援 DC 10~24V 電源輸入，典型頻率 134.2KHz FSK，適用於 TIRIS 單頁與多頁標籤。具備 RS-232C 或 RS-485 通訊介面，內建 SEMI SECS 協定，傳輸率 9600bps，支援長距離通訊（最高 1000m）。小巧耐用（128×91×31 mm），重量僅 320g。
-
電源：DC 10~24V，低耗電（60mA 平均，160mA 峰值）
-
頻率：134.2KHz FSK，支援 TIRIS 單頁與多頁標籤
-
環境：操作溫度 -10 ~ +70°C，耐濕度最高 85% RH，適合工業環境
-
通訊：RS-232C / RS-485，9600bps（固定），SEMI SECS 協定，傳輸最高 1000 公尺
-
構造：重量 320g，尺寸 128×91×31 mm，堅固安裝設計（M4 螺絲）
-
應用：工業自動化、半導體製程、資產追蹤、門禁管理
產品一般規格 (General Specifications)
| Characteristic | Specification | Comment |

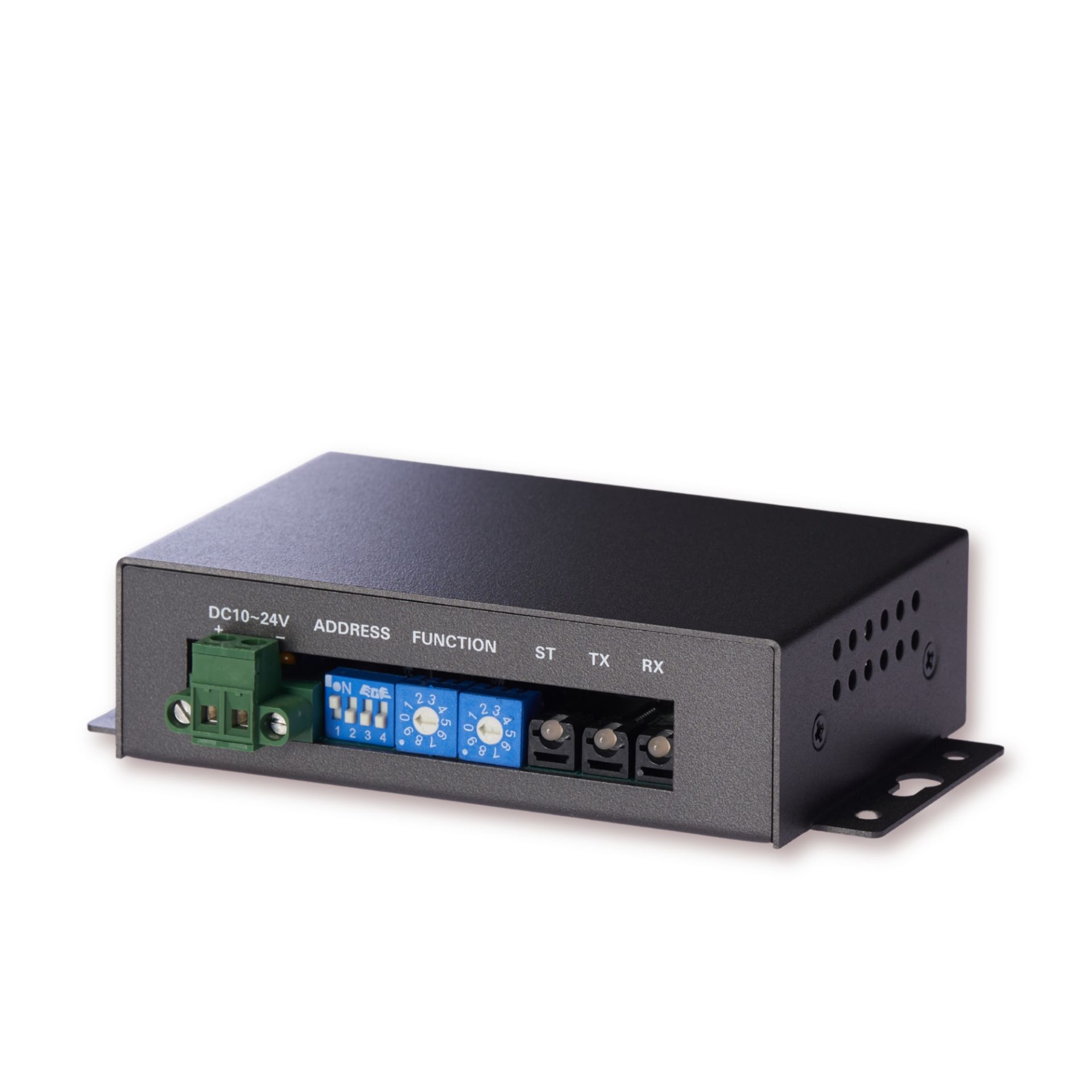

| Supply Voltage Range | DC 10 ~ 24V | Supplied from the power terminals |
| Current consumption @12VDC | Average 60mA ; Peak 160mA | Approx. 2A max, with rush current |
| Transmitting Radio Frequency | Typical 134.2KHz | FSK |
| Transponder Type | TIRIS Tag | Single & Multi page Transponder |
| Operating ambient temperature | -10 ~ +70°C | No freezing |
| Operating ambient humidity | 10 ~ 85% RH | No dew condensation |
| Storage ambient temperature | -20 ~ +85°C | No freezing |
| Storage ambient humidity | 5 ~ 95% RH | No dew condensation |
| Communication interface | RS-232C or RS-485 | 9600 bps (Default), N.8.1 (fixed) |
| Weight | 320g MAX. | No freezing |
| Dimensions | 128 × 91 × 31 mm | Except for protrusions on connectors |
| Mounting system | Secured with two M4 screws | Use the enclosed washers |
通信介面規格 (Communication Interface Specification)
| Characteristic | Specifications |

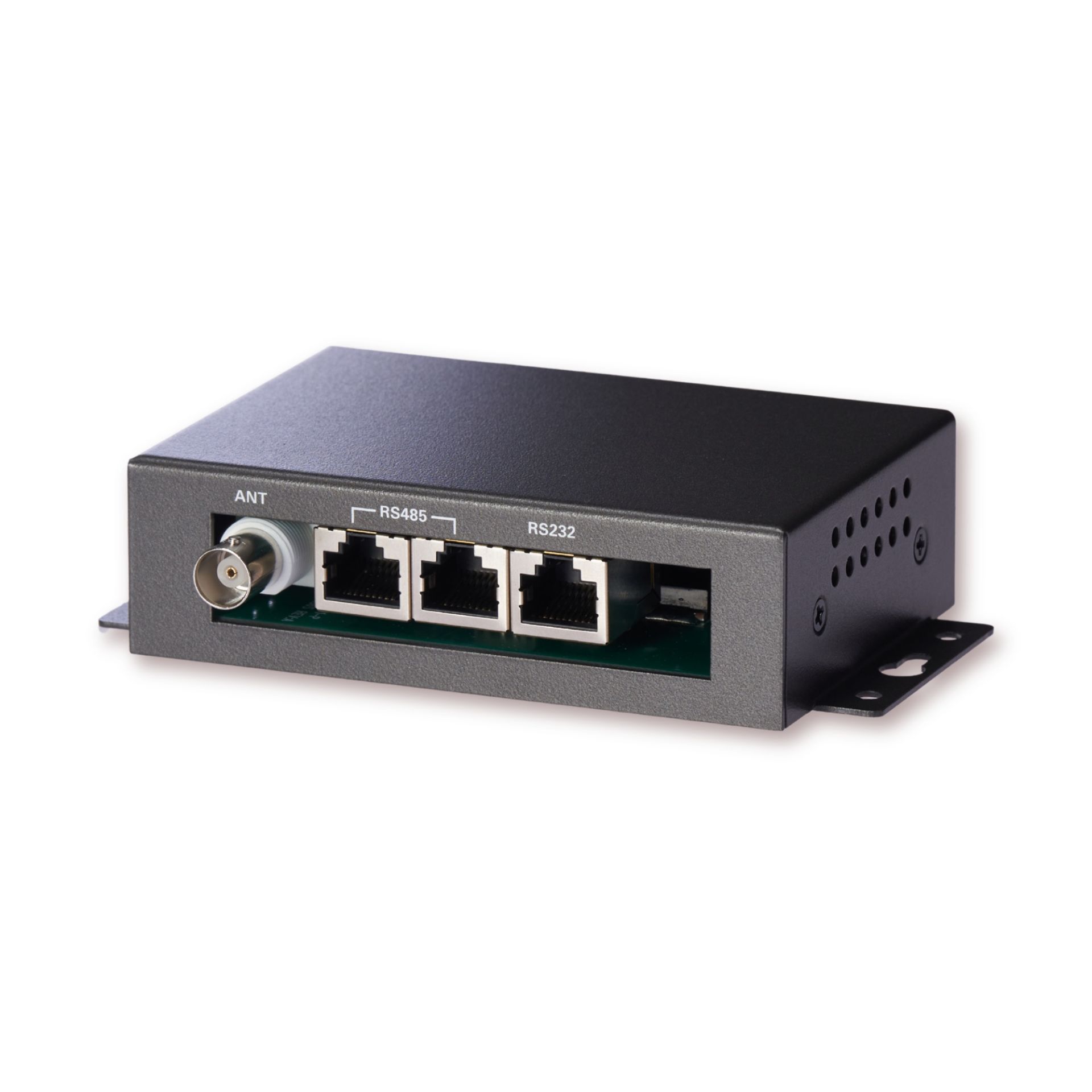

| Connector specification | RJ45 connector plug |
| Communication standard | RS-232C or RS-485 (only for use with HR4135S GateWay Controller) |
| Synchronization | Asynchronous mode, start-stop synchronization |
| Communications control standard | SEMI SECS protocol |
| Total cable length | RS-232C: 15 m Max. RS-485: From HR4135S to last HR4136S, 1000 m Max. |
