DA1531

Product Number：DA1531

Simultaneously manages access cards and patrol cards, providing complete event logs and flexible card number settings. Through diverse control mechanisms such as time zones, holidays, and expiration dates, it can precisely control the access permissions of each user. Combined with alarms for tampering, forced entry, and door left open on time, as well as emergency door opening and remote host operation, the system maintains stable operation on weekdays and holidays, and can automatically switch between online and offline modes to ensure normal card verification even during network outages. Suitable for small to medium-sized venues such as residential communities and corporate offices.

Request Customization

Product Description
Product Specifications

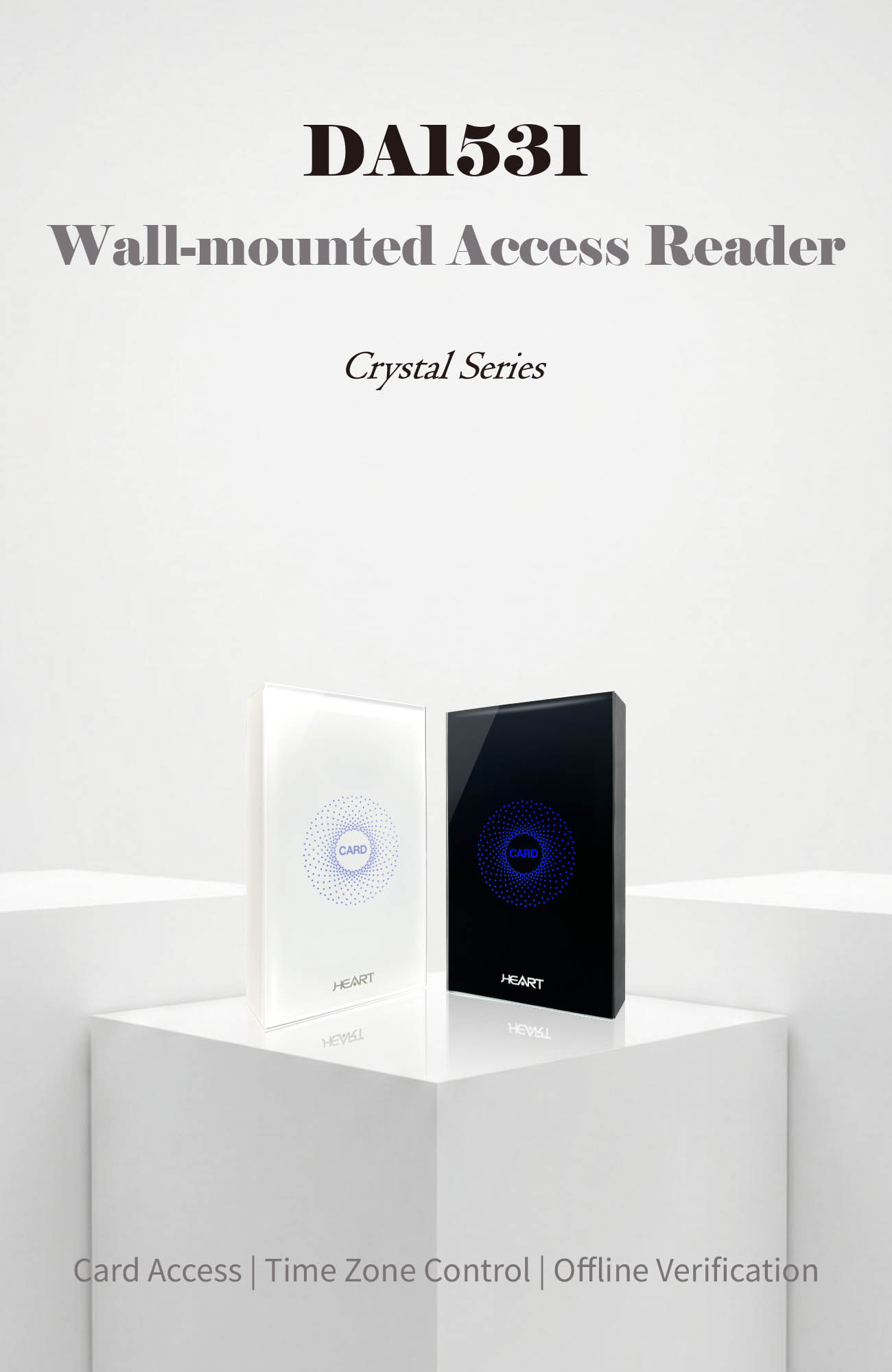

Wall-mounted access control machine｜Comprehensive security control and flexible management

Simultaneously manages access cards and patrol cards, providing complete event logs and flexible card number settings. Through diverse control such as time zones, holidays, and expiration dates, it can precisely control the access permissions of each user. Combined with alarms for tampering, forced entry/exit, and door left open on time, as well as emergency door opening and remote host operation, the system maintains stable operation mechanisms on weekdays and holidays, and can automatically switch between online and offline modes to ensure normal card verification even during network outages.

Suitable for small to medium-sized venues such as residential communities and corporate offices.

General Specifications

Characteristic	Specification	Description
Input voltage	DC 10 ~ 15V
Consume current	160mA max. @DC12V
Number of valid cards	1,000 sheets	When the number of valid cards or patrol cards is full, no more cards will be added.
Number of patrol cards	10 sheets	Patrol card swipe only records the information, does not open the door.
Number of records	1,500 transactions	When the record is full, it will be overwritten starting with the oldest record.
Display light	LEDs (blue, green, red, white)	Different light colors are displayed according to system status.
Alarm function	support	Dismantling alarm, forced entry/exit alarm, door left open alarm
Group function	One group can be set up	Individual holiday tables and time zone tables can be set.
Operating temperature	0 ~ 50°C
Operating humidity	5 ~ 95%
Shell material	ABS (UL94V0)
Dimensions (Length x Width x Height)	120 x 72 x 24 mm
Read head mode	Mifare	Card specifications ISO/IEC 14443A, reading distance approximately 5cm
DI	3 groups	Includes an exit button, magnetic reed, and emergency latch; offers NO/NC contact selection.
DO	2 groups	Includes electric lock and alarm, providing NO/NC contact selection.
Built-in backup battery	lithium batteries	The clock IC can operate normally for about 60 days during a power outage and will automatically recharge when power is restored.
Time-of-use control function	support	Independent time zone settings for 7 days a week, 8 traffic periods per day, support for holiday restrictions and suspension of traffic control, and historical record lookup.
Remote control function	support	It has a host command emergency door opening function, allowing the host to open the door promptly.
