DA1537

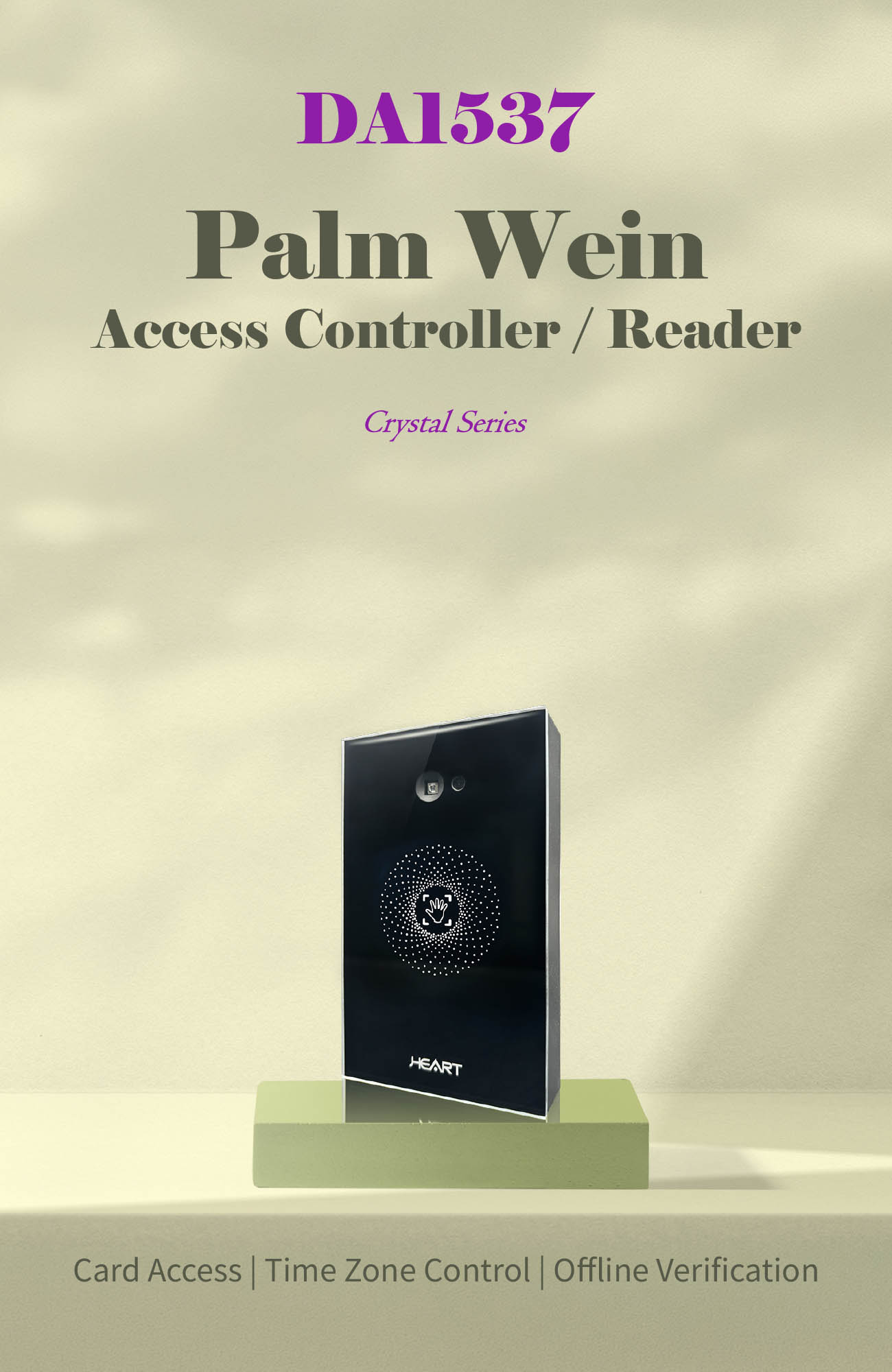

Product Number：DA1537The DA1537 Crystal Series Palm Vein Access Controller utilizes contactless palm vein recognition technology to provide secure and reliable identity authentication for high-security environments. It integrates event logging, time scheduling, group management, alarm I/O, and remote control functions to help improve access management efficiency. A built-in backup battery provides temporary power during outages to maintain system operation.
- High-Precision Biometric Authentication: Supports palm vein recognition with a scanning distance of 10–30 cm, providing secure and contactless verification.
- Large-Capacity Storage: Supports up to 4,000 credentials (including 2,000 palm vein templates) and stores up to 4,000 access event records.
- Multi-Level Alarm Protection: Built-in alarms for tamper detection, forced entry/exit, and door-open timeout, with relay linkage support to enhance security.
- Network & Power Outage Protection: Supports offline verification of valid cards and includes a built-in lithium battery to ensure the RTC IC operates normally for approximately 60 days during power outages.
- Flexible Time Schedule Management: Provides independent time zone settings for 7 days per week and up to 8 access periods per day, enabling fine-grained personnel access control.
General Specifications
| Characteristic | Specification | Description |
| Input Voltage | DC 10 ~ 15V | |
| Current Consumption | Max. 160 mA @ DC 12V | |
| Valid Card Capacity | Up to 4,000 cards Up to 2,000 palm vein templates |
No additional cards can be stored when the valid card or patrol card capacity is full |
| Patrol Card Capacity | 10 cards | Patrol card access is recorded only and does not unlock the door |
| Event Log Capacity | 4,000 records | When the log memory is full, the oldest record will be overwritten |
| Status Indicators | LED (Blue, Green, Red, White) | Different LED colors indicate different system statuses |
| Alarm Function | Supported; configurable with K2 relay linkage | Tamper alarm, forced entry/exit alarm, and door-open timeout alarm |
| Group Function | 1 group configurable | Individual holiday tables and time zone tables can be configured |
| Operating Temperature | 0 ~ 50°C | |
| Operating Humidity | 5 ~ 95% | |
| Housing Material | ABS (UL94V0) | |
| Dimensions (L × W × H) | 120 × 72 × 24 mm | |
| Card Format | ISO/IEC 14443A | Reading distance up to 5 cm |
| DI | 3 sets | Includes exit button, door contact, and emergency button; NO/NC contacts selectable |
| DO | 2 sets | Includes electric lock and alarm outputs; NO/NC contacts selectable |
| Built-in Backup Battery | Lithium battery | Powers the RTC IC for approximately 60 days during power loss; automatically recharges when power is restored |
| Time Schedule Control | Supported | Independent schedules for 7 days per week, up to 8 access periods per day; supports holiday control, temporary suspension, and historical log inquiry |
| Remote Control Function | Supported | Supports emergency door opening via host command for real-time remote control |
