DA1538
Product Number：DA1538The DA1538 Crystal Series Face Recognition Access Controller utilizes contactless facial recognition technology to provide fast and reliable identity authentication. It is ideal for office buildings, factories, and other high-traffic environments. Supporting essential access control functions such as event logging, time scheduling, and remote control, it helps improve entrance management efficiency while meeting everyday operational needs.
- High-Performance Facial Recognition: Supports facial feature recognition with a detection range of 40–90 cm (optimal at 50 cm) and is suitable for user heights from 1.2 to 2.1 m, delivering fast and contactless access.
- Large-Capacity Data Storage: Stores up to 100 facial templates; supports up to 4,000 card records including access and control cards, with a built-in buffer for 4,000 access control event logs.
- Intelligent Security Mechanisms: Equipped with multiple alarms including tamper detection, forced entry/exit, and door-open timeout; supports patrol card mode (record only, no door unlock) to ensure inspection activities do not compromise security.
- Stable and Reliable Operation: Built-in lithium battery maintains normal clock operation for approximately 60 days, and offline verification ensures valid access decisions even during network interruptions.
- Flexible Access Control Management: Supports independent time zone settings for 7 days per week and up to 8 access periods per day, with flexible holiday schedules and access rules configurable for different user roles.
General Specifications
| Characteristic | Specification | Description |
| Input Voltage | DC 10 ~ 15V | |
| Current Consumption | Max. 160 mA @ DC 12V | |
| Valid Card Capacity | 4,000 cards (up to 100 face templates) | No additional cards can be stored when the valid card or patrol card capacity is full |
| Patrol Card Capacity | 10 cards | Patrol card access is recorded only and does not unlock the door |
| Event Log Capacity | 4,000 records | When the log memory is full, the oldest record will be overwritten |
| Status Indicators | LED (Blue, Green, Red, White) | Different LED colors indicate different system statuses |
| Alarm Function | Supported; configurable with K2 relay linkage | Tamper alarm, forced entry/exit alarm, and door-open timeout alarm |
| Group Function | 1 group configurable | Individual holiday tables and time zone tables can be configured |

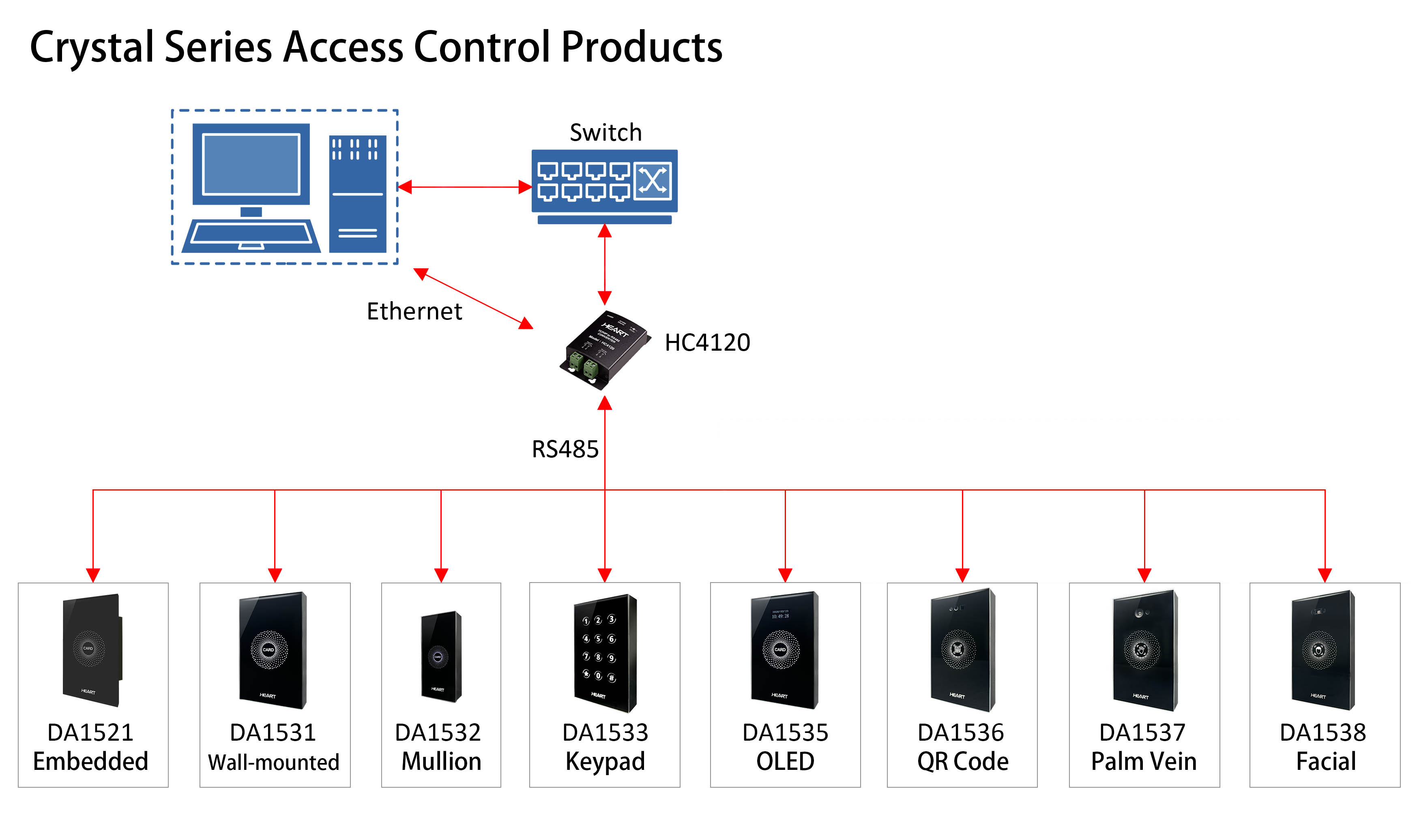

| Communication Interface | RS485 | |
| Operating Temperature | 0 ~ 50°C | |
| Operating Humidity | 5 ~ 95% | |
| Housing Material | ABS (UL94V0) | |
| Dimensions (L × W × H) | 120 × 72 × 24 mm | |
| Card Format | ISO/IEC 14443A | Reading distance up to 5 cm |
| DI | 3 sets | Includes exit button, door contact, and emergency button; NO/NC contacts selectable |
| DO | 2 sets | Includes electric lock and alarm outputs; NO/NC contacts selectable |
| Built-in Backup Battery | Lithium battery | Powers the RTC IC for approximately 60 days during power loss; automatically recharges when power is restored |
| Time Schedule Control | Supported | Independent schedules for 7 days per week, up to 8 access periods per day; supports holiday control, temporary suspension, and historical log inquiry |
| Remote Control Function | Supported | Supports emergency door opening via host command for real-time remote control |
