DA1532
Product Number：DA1532Simultaneously manages access cards and patrol cards, providing complete event logs and flexible card number settings. Through diverse control mechanisms such as time zones, holidays, and expiration dates, it can precisely control the access permissions of each user. Combined with alarms for tampering, forced entry, and door left open on time, as well as emergency door opening and remote host operation, the system maintains stable operation on weekdays and holidays, and can automatically switch between online and offline modes to ensure normal card verification even during network outages.
Suitable for small to medium-sized venues such as residential communities and corporate offices.

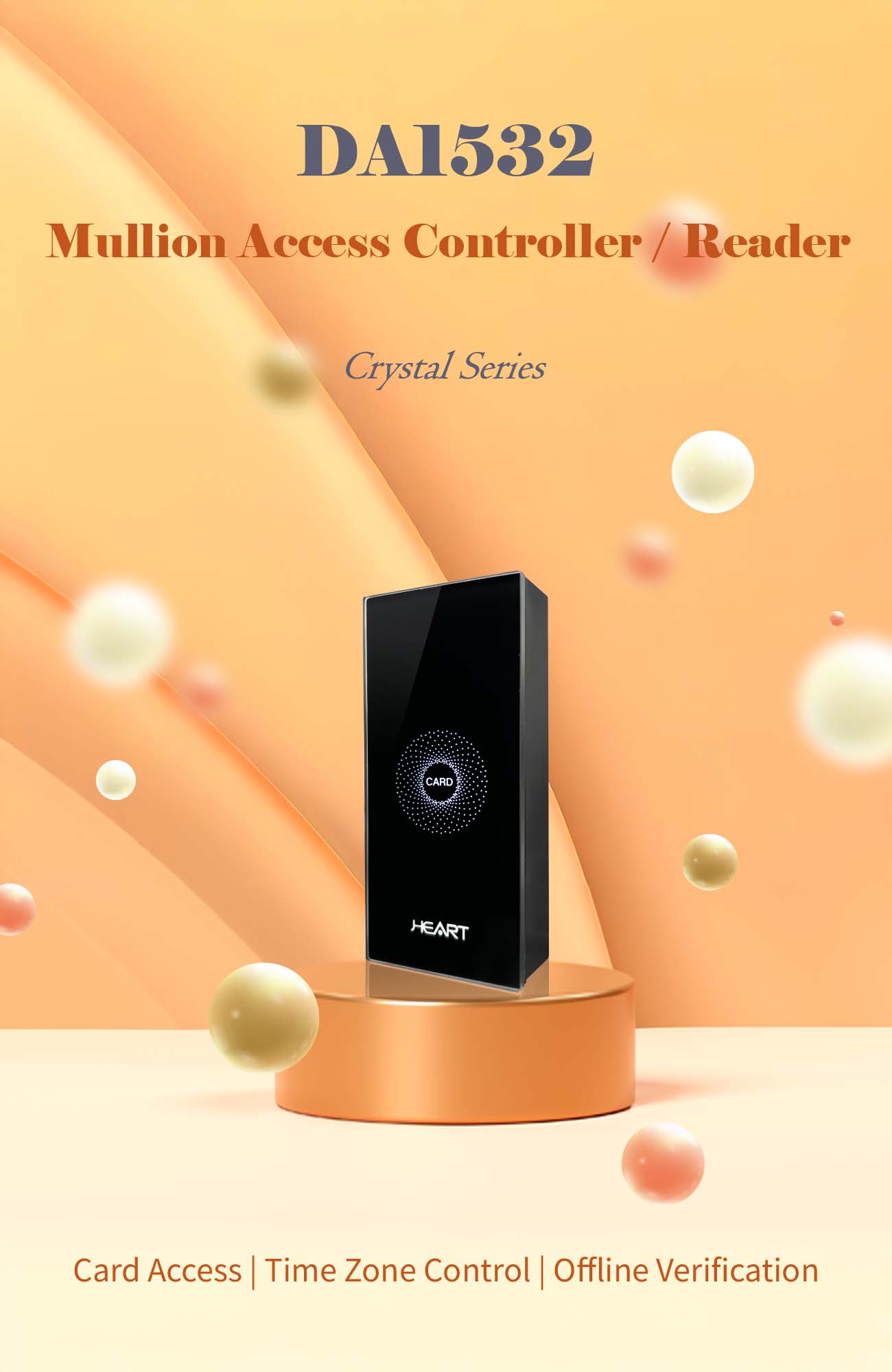

Mullion Access Controller / Reader | Comprehensive security and flexible management
Simultaneously manages access cards and patrol cards, providing complete event logs and flexible card number settings. Through diverse control mechanisms such as time zones, holidays, and expiration dates, it can precisely control the access permissions of each user. Combined with alarms for tampering, forced entry/exit, and door left open on time, as well as emergency door opening and remote host operation, the system maintains stable operation on weekdays and holidays, and can automatically switch between online and offline modes to ensure normal card verification even when the network is interrupted.
Suitable for small to medium-sized venues such as residential communities and corporate offices.
Suitable for small to medium-sized venues such as residential communities and corporate offices.
General Specifications
| Characteristic | Specification | Description |
| Input voltage | DC 10 ~ 15V | |
| Consume current | 160mA max. @DC12V | |
| Number of valid cards | 4,000 sheets | When the number of valid cards or patrol cards is full, no more cards will be added. |
| Number of patrol cards | 10 sheets | Patrol card swipe only records the information, does not open the door. |
| Number of records | 4,000 transactions | When the record is full, it will be overwritten starting with the oldest record. |
| Display light | LEDs (blue, green, red, white) | Different light colors are displayed according to system status. |
| Alarm function | support | Dismantling alarm, forced entry/exit alarm, door left open alarm |
| Group function | One group can be set up | Individual holiday tables and time zone tables can be set. |
| Operating temperature | 0 ~ 50°C | |
| Operating humidity | 5 ~ 95% | |
| Shell material | ABS (UL94V0) | |
| Dimensions (Length x Width x Height) |
- |
|
| Read head mode |
Mifare |
Card specifications ISO/IEC 14443A, reading distance approximately 5cm |
| DI |
3 groups |
Includes an exit button, magnetic reed, and emergency latch; offers NO/NC contact selection. |
| DO |
2 groups |
Includes electric lock and alarm, providing NO/NC contact selection. |
| Built-in backup battery |
lithium batteries |
The clock IC can operate normally for about 60 days during a power outage and will automatically recharge when power is restored. |
| Time-of-use control function |
support |
Independent time zone settings for 7 days a week, 8 traffic periods per day, support for holiday restrictions and suspension of traffic control, and historical record lookup. |
| Remote control function |
support |
It has a host command emergency door opening function, allowing the host to open the door promptly. |
