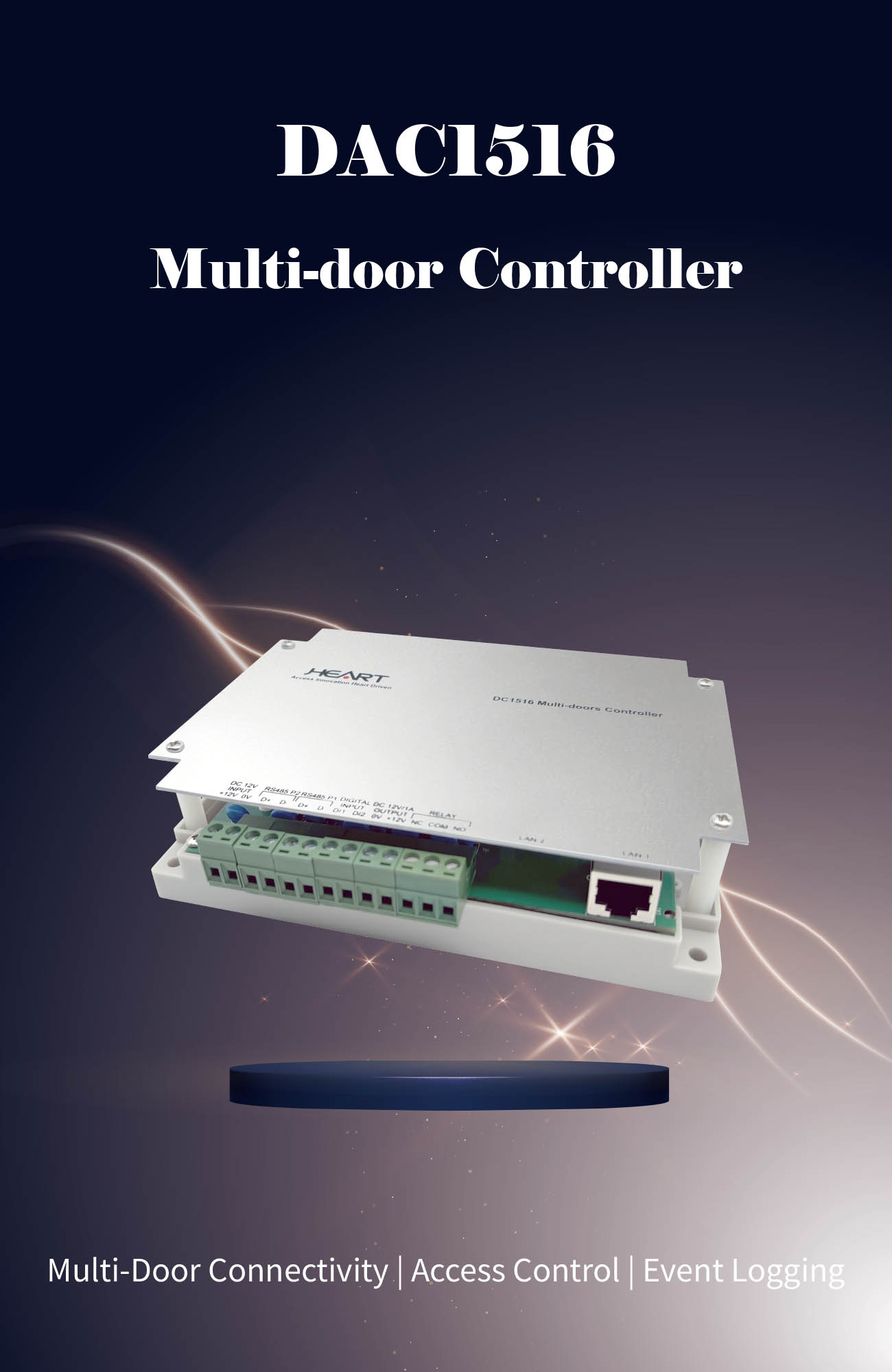

DAC1516

Product Number：DAC1516

It supports up to 16 card readers and can be quickly set up and updated using the Web Console and backend software. It features complete functions such as time zone, holiday, visitor card, emergency access, and event query, making it suitable for medium to large-sized access control environments with multiple entrances and exits, such as enterprises, factories, offices, and dormitories.

Download Catalog Request Customization

Product Description
Product Specifications

Multi-door access control controller｜Centralized management, high efficiency and stability
Access control core

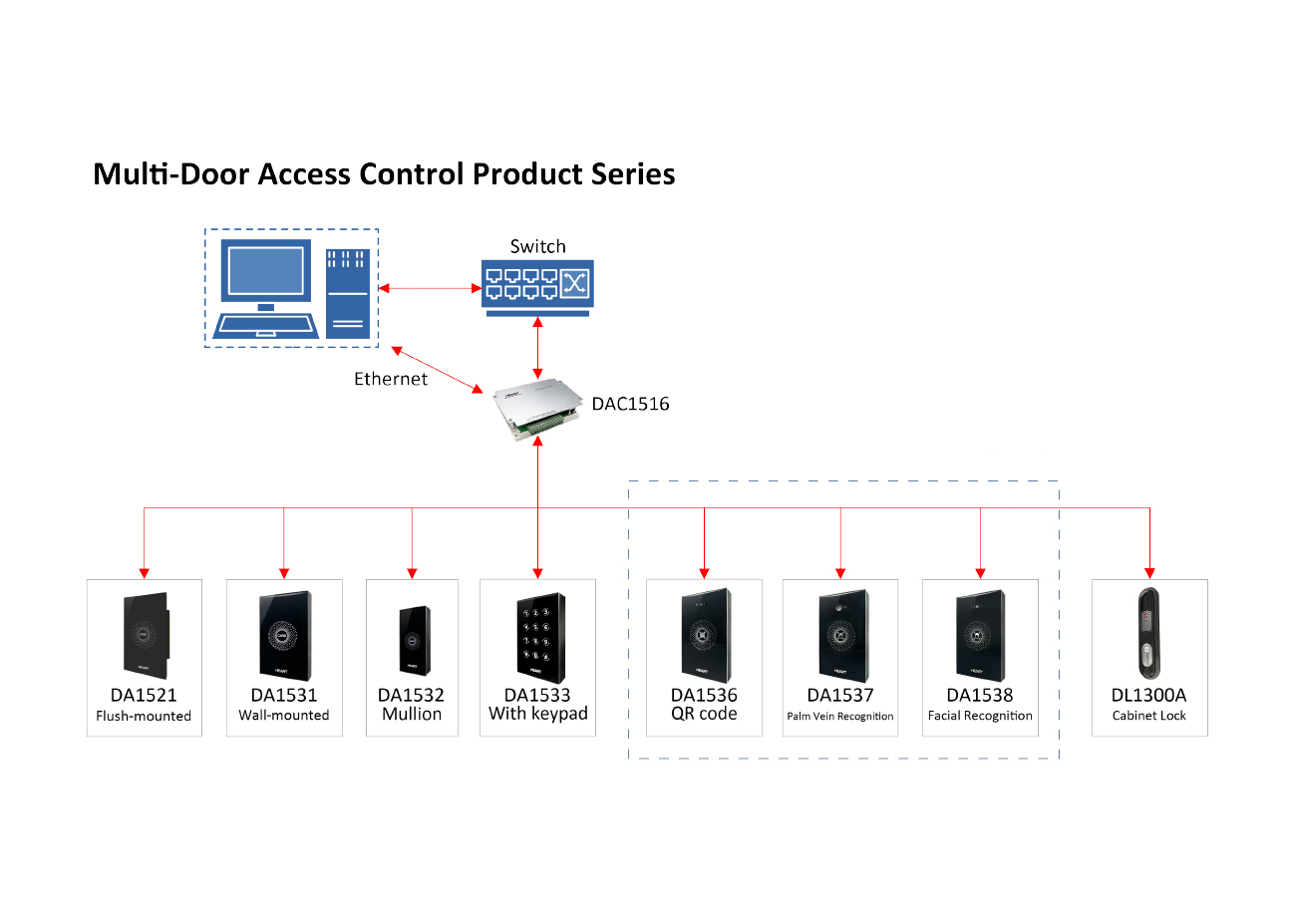

This multi-door access controller supports up to 16 card readers and can be quickly set up and updated using a web console and backend software.

It features comprehensive functions including time zone, holiday, visitor card, emergency access, and event query, and is suitable for medium to large-sized access control environments with multiple entrances and exits, such as businesses, factories, and dormitories.

General Specifications

Characteristic	Specification	Description
Input voltage	DC 10 ~ 15V
Consume current	210mA
Number of control gates	Up to 16 doors
Number of valid cards	100,000 tickets per door
Number of records	200,000 transactions per door
Display Language	Traditional Chinese, Simplified Chinese, English

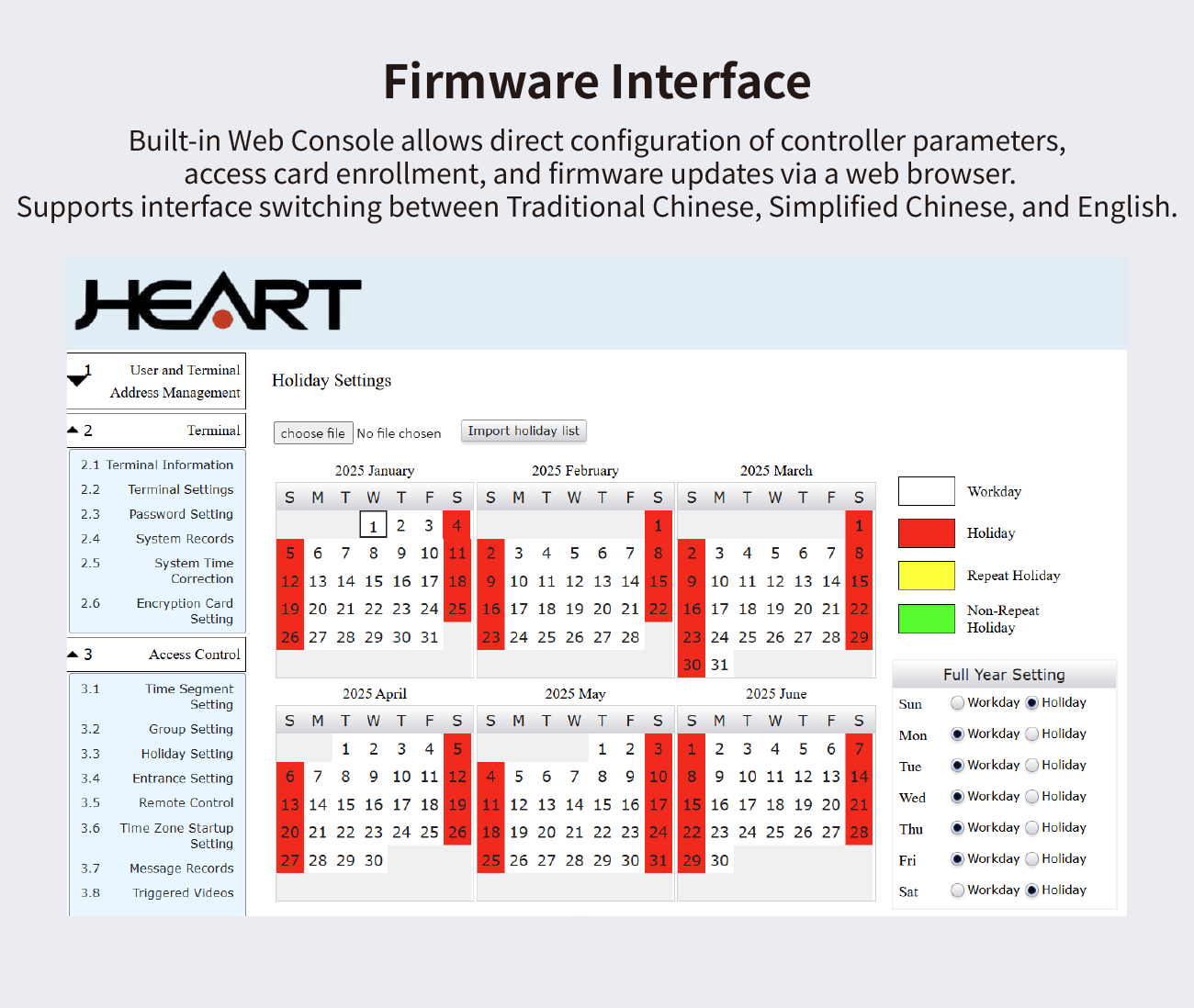

User interface	Web Console	Controller parameters can be set through a browser.
Host-side communication interface	Ethernet 10/100M baseT
Device-side communication interface	RS-485 38400 bps x2	It can automatically search for the door station. The P1 and P2 communication ports can connect up to 16 devices simultaneously.
Operating temperature	0 ~ 50°C
Operating humidity	5 ~ 95%
Dimensions (Length x Width x Height)	155 x 120 x 42 mm
Power output	DC 12V / 1A	Provides power to external devices (alarms).
Built-in backup battery	Provides power to the RTC during power outages.	The RTC can be provided and will be able to operate normally for at least 6 months.
relay	Group 1	External alarms can be connected, and NO/NC contact selection is available.
DI	2 groups	Provides emergency door opening with fire alarm and a set of backup contacts.
Firmware update	Web Console	Update firmware version via browser
Time-of-use control function	support	Independent time zone settings for 7 days a week, 8 traffic periods per day, supporting holiday restrictions and historical record queries.
Remote control function	support	It has a host command emergency door opening function, allowing the host to open the door promptly.
