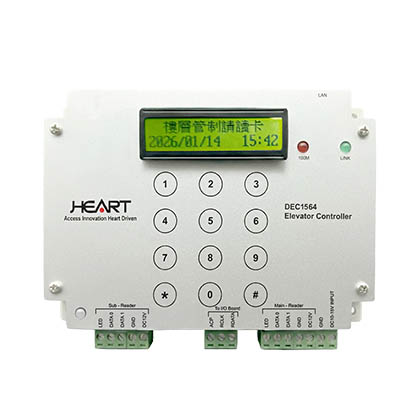

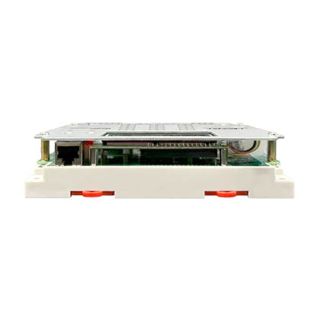

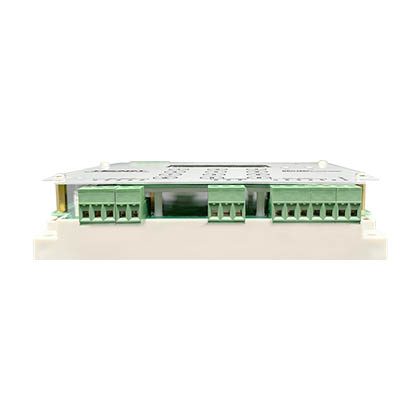

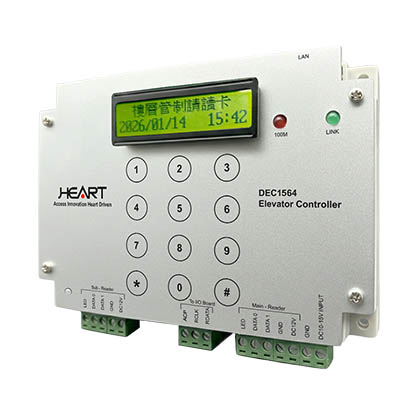

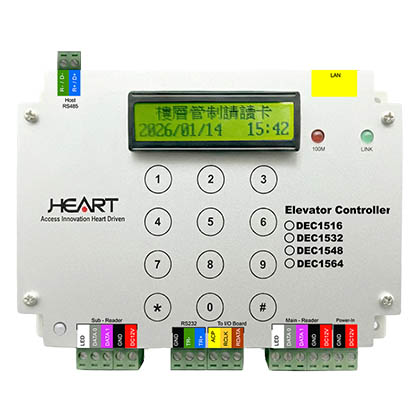

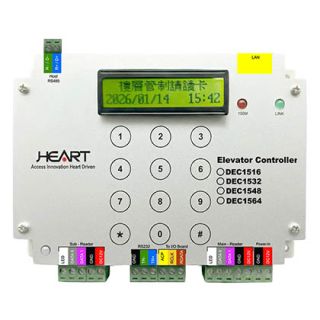

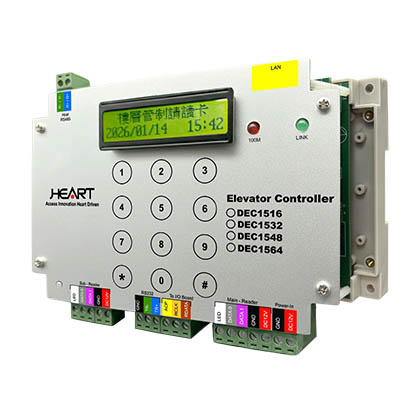

- Outstanding Control Capability: Each device can manage up to 64 floors, meeting the vertical security needs of large buildings.
- High Data Storage Capacity: Supports up to 9,200 valid cards and records up to 6,200 access events, ensuring comprehensive management.
- Versatile Authentication Support: Supports external secondary readers, keypad readers, or QR code scanners, and includes personal password and patrol functions.
- Flexible Group Management: Up to 10 groups can be configured, each with individual holiday schedules and access time zones for more flexible management.
- Robust Communication Integration: Built-in Ethernet, RS485, and RS232 interfaces for seamless integration with existing security systems.
- Intuitive User Interface: Equipped with a backlit display and LED indicators to show date, time, and operation status in real-time, enhancing user experience.

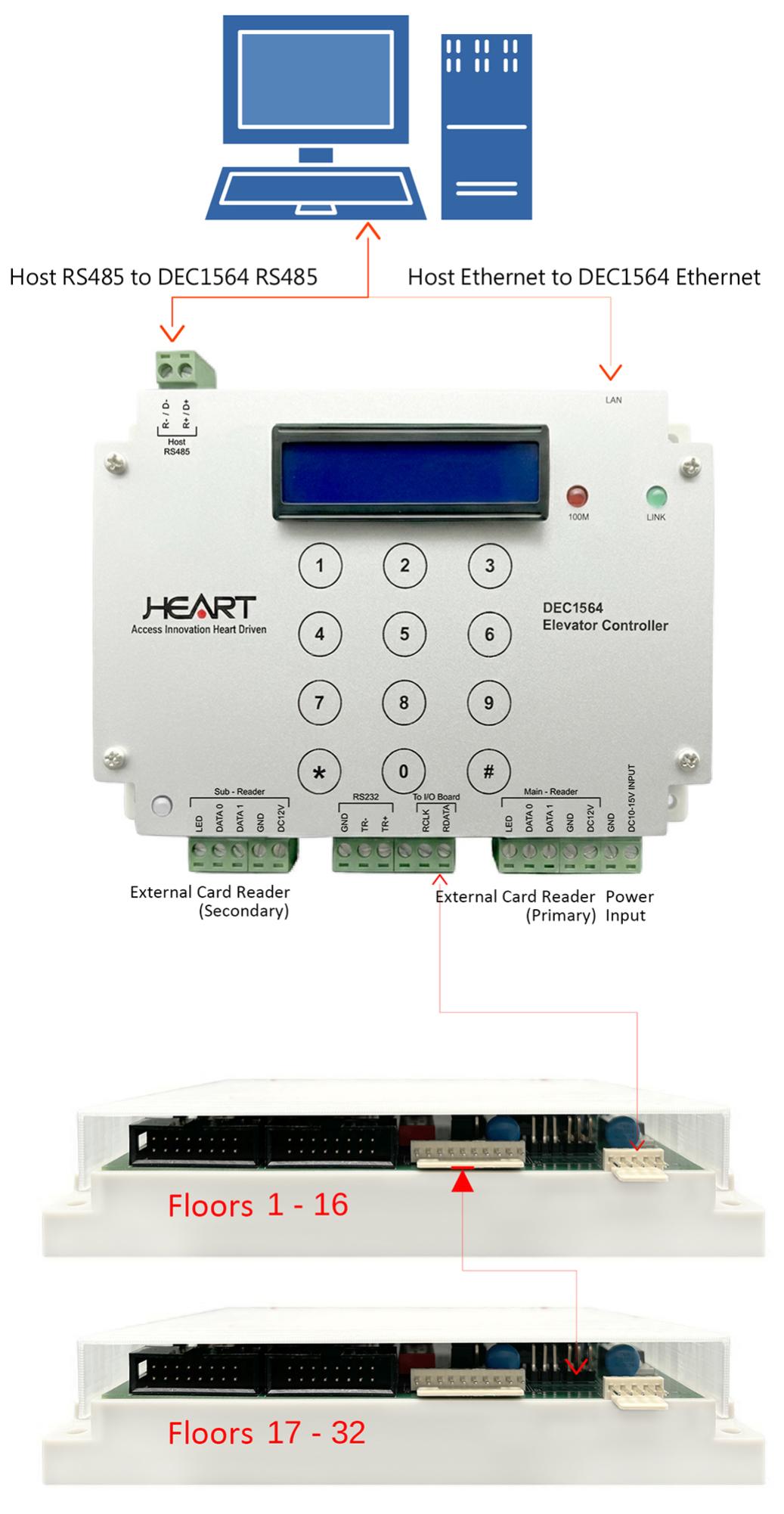

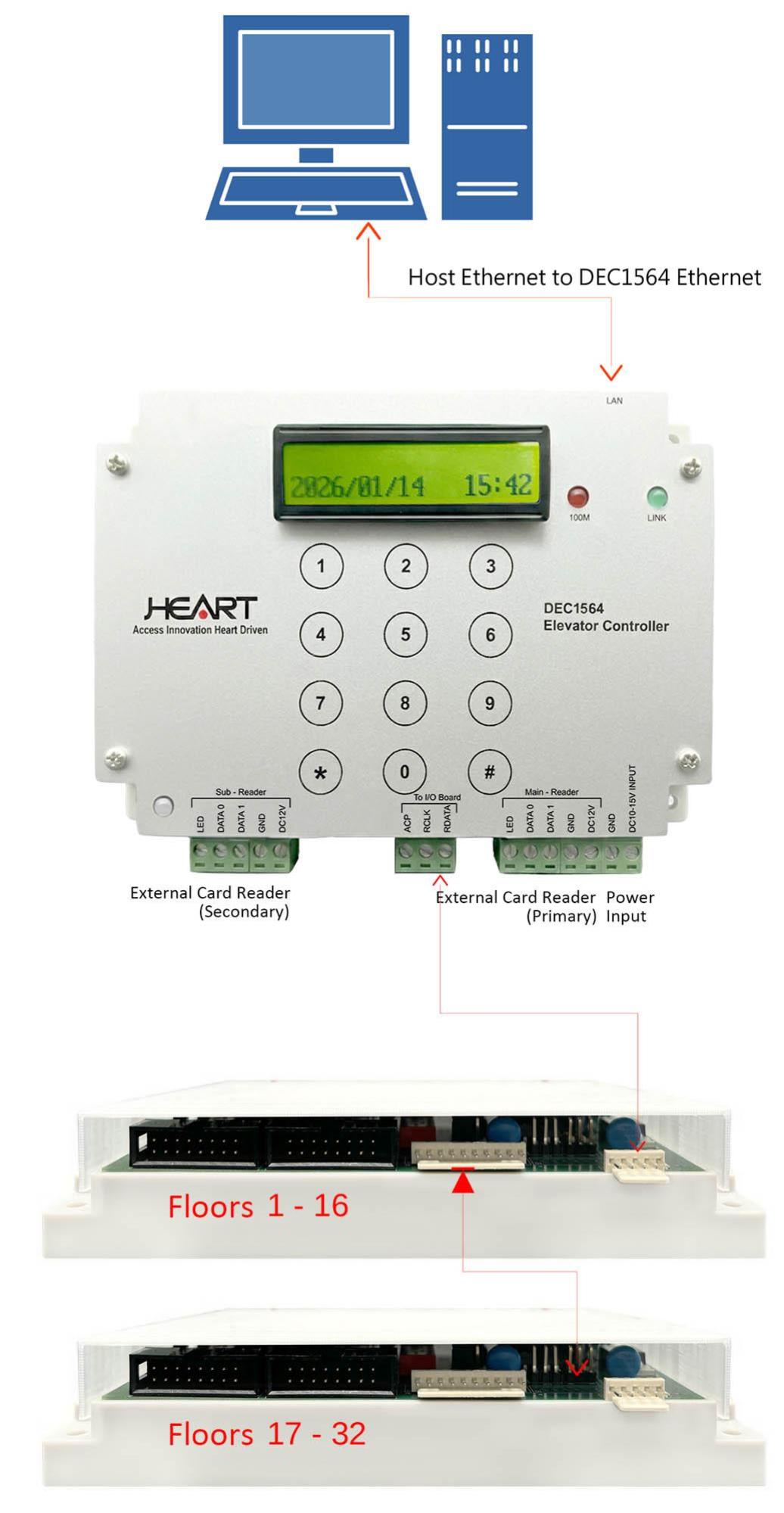

System Architecture
General Specifications

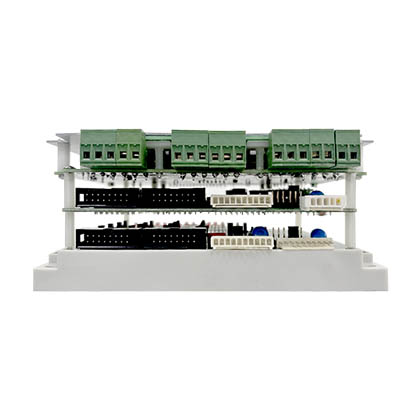

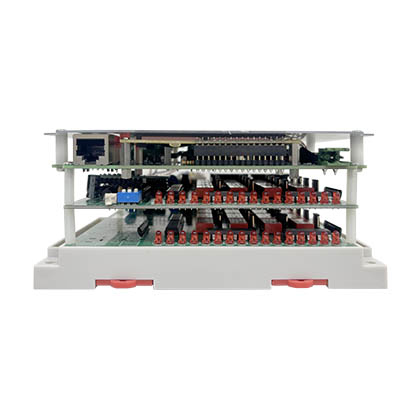

| Characteristic | Specification | Description |
| Operating Voltage | DC +10 ~ 15V | |
| Current Consumption | 280mA max. @DC12V | |
| Valid Cards | 9,200 cards | Requires external secondary reader for visitor and patrol card functions |
| Record Capacity | 6,200 entries | |
| Floor Control | Up to 64 floors | Requires DEB016 Elevator Control I/O Board |
| Language Versions | Traditional Chinese / Simplified Chinese / English | |
| Indicator LEDs | LED (Green, Red) | Displays different colors according to system status |
| Communication Interface | Ethernet, RS485, RS232 | |
| Maximum Connection Distance | Ethernet ≤ 100M RS485 Bus ≤ 1000M (1093.61 yd) RS232 ≤ 10M |
|
| Personal Password | Supported, 1 access period configurable | Requires a reader with keypad |
| Group Management | Up to 10 groups, each with individual holiday and timezone settings | |
| QR Code Support | External HR800 series QR code reader supported | |
| Operating Temperature | 0 ~ 50°C | |
| Operating Humidity | 5 ~ 95% | |
| Dimensions (L x W x H) | 155 x 131 x 34 mm | |
| Battery | CR2032 battery | Keeps clock IC running for ~60 days during power outage |
| Time Zone Control | Supports weekly time zones, access periods, holidays, and suspend control | Can specify individual floors to ignore suspend control |
