HB0312

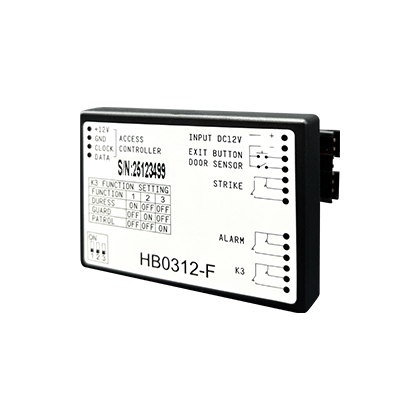

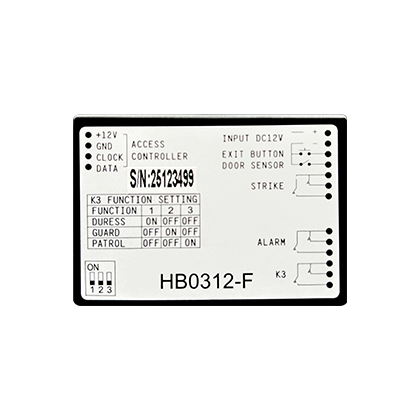

Product Number：HB0312The HB0312 is a dedicated Card Reader I/O Controller for the HEART series, providing power and I/O expansion for card readers, suitable for access control system integration. The device features 2 built-in input detection points (for exit buttons and door sensors) and 3 relay outputs (K1: electric lock, K2: alarm, K3: security/patrol, etc.), supporting NO/NC mode.
Compact in size, it can be installed in a single-gang electrical box and is made with epoxy resin sealing for durability. It supports DC 10–15V power and provides 300mA output current, making it ideal for expanding various access control peripheral devices.
- The HEART series of dedicated I/O controllers can provide card reader power and integrate external device control.
- Provides 2 sets of input detection points , supporting exit button and door detection functions.
- Provides 3 sets of relay output dry contacts (K1: STRIKE, K2: ALARM, K3: DURESS/GUARD/PATROL), supporting NC/NO mode.
- It is compact and easy to install and can be placed in a single-gang electrical box.
- Encapsulated with Epoxy Resin material , durable and dustproof.
- The applicable voltage range is DC 10~15V , the current consumption is 300mA, and it supports stable operation.
- Applicable to a wide range of temperature and humidity , operating temperature 0℃~50℃, humidity 5%~95% (non-condensing).
| model | HB0312 |
| Input points | 2 sets (EXIT BUTTON / DOOR SENSOR) |
| Relay output | 3 groups (24V DC, 3A, NC/NO) |
| Relay function | K1: STRIKE, K2: ALARM, K3: DURESS/GUARD/PATROL |
| Operating voltage | DC 10~15V |
| Current consumption | 300mA |
| Shell material | Epoxy Resin |
| size | 45(H) x 64(W) x 10(D) mm |
| weight | 90g |
| Operating temperature | 0℃ ~ 50℃ |
| Operating humidity | 5% ~ 95% (non-condensing) |
