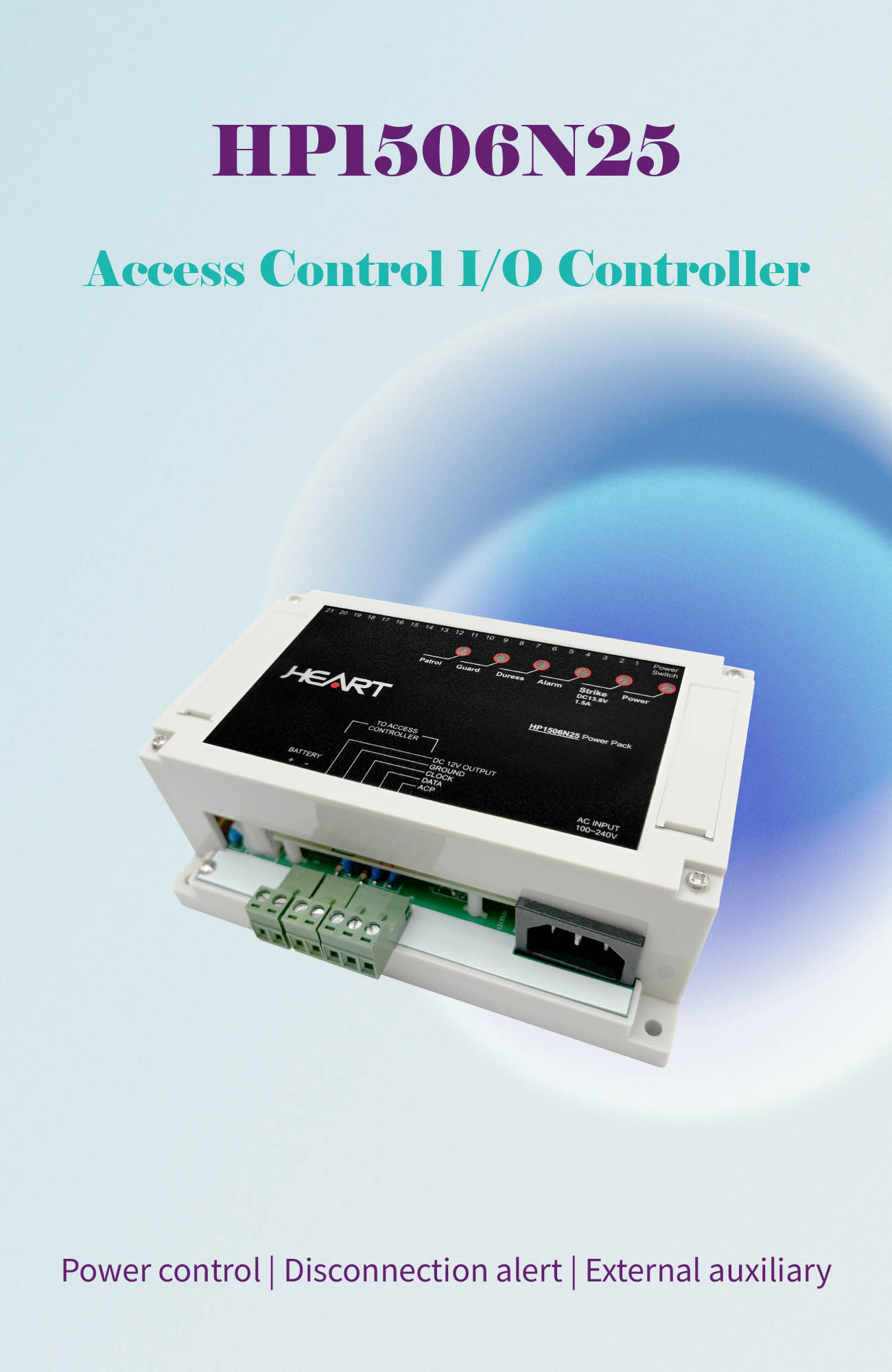

HP1506N25
Product Number：HP1506N25This device integrates multiple input and relay contacts, providing power and signal connections for access control controllers, electric locks, and related equipment.
The side wiring terminals are clearly configured for easy installation and wiring; the front panel features multiple status indicator lights that display real-time power, system, and alarm status, facilitating on-site monitoring and maintenance.

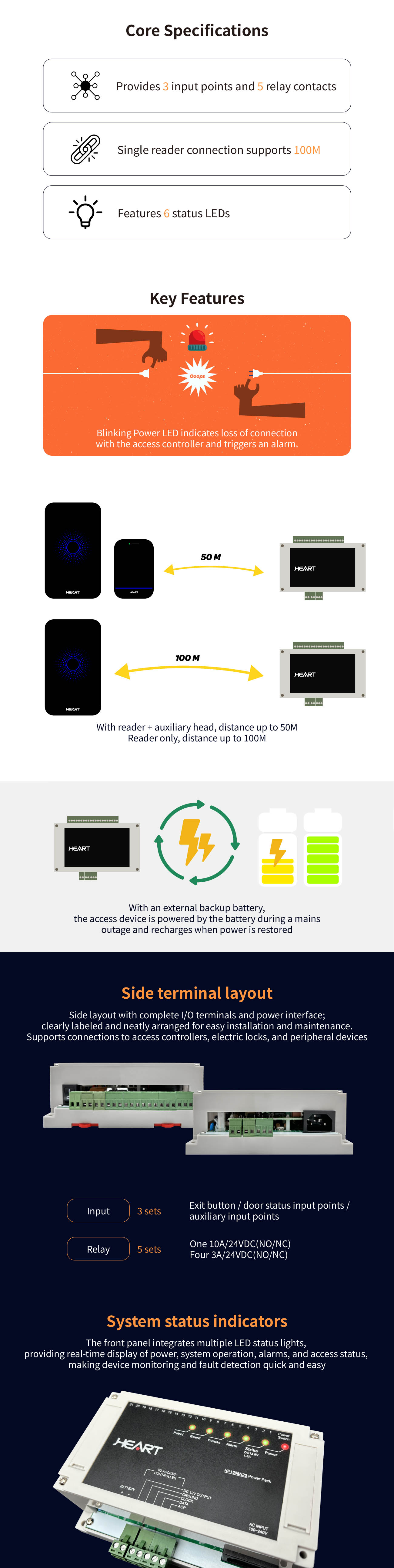

Access Control I/O Controller | Card Reader and Electric Lock Power Supply and Relay Control
This device integrates multiple input and relay contacts, providing power and signal connections for access control controllers, electric locks, and related equipment.
The side wiring terminals are clearly configured for easy installation and wiring; the front panel features multiple status indicator lights that display real-time power, system, and alarm status, facilitating on-site monitoring and maintenance.
The side wiring terminals are clearly configured for easy installation and wiring; the front panel features multiple status indicator lights that display real-time power, system, and alarm status, facilitating on-site monitoring and maintenance.
General Specifications
| Characteristic | Specification | Description |
| Input power | AC 100V~240V | |
| Output | DC 13.8V 500mA (for access control controllers) DC 13.8V 1.5A (unregulated for electric locks) |
|
| enter | 3 groups | Exit button input point / Door open/close status input point / Auxiliary input point |
| relay | 5 groups | One set of 10A/24VDC (NO/NC) and four sets of 3A/24VDC (NO/NC) |
| Display light | Equipped with 6 status indicator lights | A flashing power light indicates a loss of connection to the access control system and will trigger an alarm. |
| Distance of line | Use 0.5mm cable | With a card reader and a secondary reader, the range can reach 50 meters; with just the card reader, the range can reach 100 meters. |
| Material | ABS | |
| Dimensions (Length x Width x Height) | 155 x 110 x 60 mm | |
| weight | 400g without alarm; 410g with alarm |
|
| Operating temperature | 0 ~ 50°C | |
| Operating humidity | 5 ~ 95% | |
| contact | Provide backup battery contacts | When an external backup battery is available, it supplies power to the access control equipment during a mains power outage and can be recharged when power is restored. |
