HLR2880

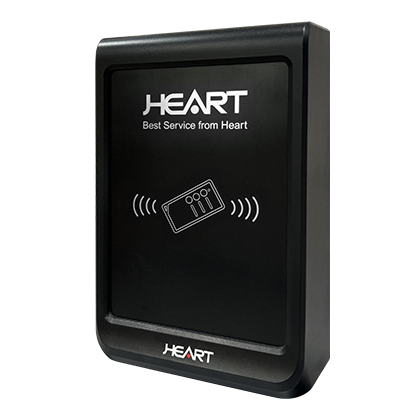

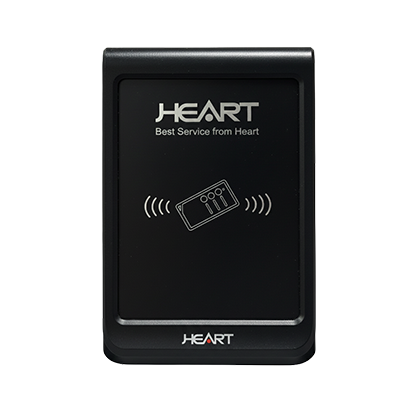

Product Number：HLR2880he HLR2880 is a 2.45GHz long-range card reader supporting i-CARD technology. It can detect i-CARD transmitters and transmit the identification code to an access control system via the Wiegand interface. In an interference-free environment, the device can detect up to 15 meters, making it suitable for applications requiring long-range detection, such as vehicle entry management, personnel tracking, and smart building integration.
The device operates on a DC 12V power supply and features a low-power design, with a slim body (125 x 80 x 22 mm) for flexible and convenient installation. The HLR2880 provides a stable and reliable long-range identification solution, enhancing access control efficiency and automation capabilities.
- i-CARD long-range RFID proximity reader , suitable for people or vehicle identification applications.
- Using 2.45GHz frequency , the effective sensing distance can reach up to 15 meters.
- Supports Wiegand 26/34 output and can be integrated into mainstream access control systems.
- The slim design allows for flexible installation , measuring only 125(H) x 80(W) x 22(D) mm.
- Low power consumption design , with a standby current of only about 4mA, improves energy efficiency.
- Suitable for driveway entrances and exits, personnel identification, factories, smart buildings and other places.
| model | HLR2880 |
| Application frequency | 2.45GHz |
| Effective sensing distance | Within 15 meters (no interference environment) |
| Communication interface | Wiegand 26 / 34 (confirm before ordering) |
| Operating voltage | DC 12V |
| Standby current | About 4mA |
| Operating temperature | 0℃ ~ 85℃ |
| Operating humidity | 5% ~ 95% (non-condensing) |
| Dimensions | 125(H) x 80(W) x 22(D) mm |
