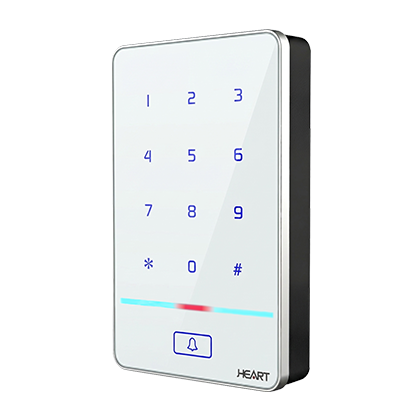

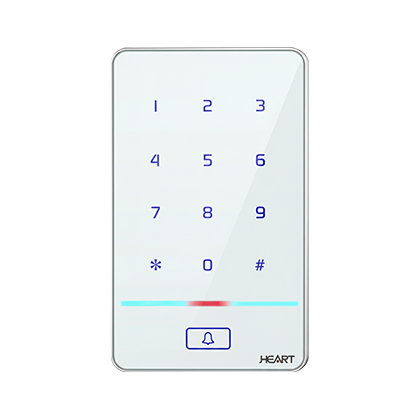

HR610K
Product Number：HR610KThe HR610K is a proximity plus keypad auxiliary reader, specially designed for expanding access control systems, providing stable and efficient RFID card reading and keypad input functionality. The device features an IP65 waterproof and dustproof design, suitable for various environments to ensure reliable operation.
It supports 125KHz (EM) and 13.56MHz (MIFARE, ISO15693) card technologies, with a maximum detection distance of 7 cm, making it ideal for access control in enterprises, factories, and residential areas. The HR610K includes an LED touch doorbell and touch-sensitive keypad for a more intuitive user experience.
It also supports night-vision standby mode to ensure stable operation in low-light conditions. Additionally, the HR610K can be customized with a client logo, providing flexible application options, making it an ideal expansion device for smart access control systems.
- The proximity + push-button secondary reader is suitable for access control system expansion, providing stable and efficient RFID card reading and push-button input functions.
- IP65 waterproof and dustproof design ensures stable operation of the device in various environments.
- Supports multiple card reader technologies , including 125KHz (EM), 13.56MHz (MIFARE, ISO15693) , and a sensing distance of up to 7cm.
- Equipped with an LED touch-sensitive doorbell , it provides intuitive doorbell functionality for enhanced convenience.
- The touch button design is sensitive to operation and improves the flexibility of access control management.
- Equipped with night vision standby function , it ensures stable operation in low-light environments.
- We can customize the logo according to customer needs and provide brand identification applications.
- External dimensions : 125(H) x 80(W) x 22(D) mm, flexible and convenient installation.
| model | HR610K |
| Operating voltage | DC 11.5V ~ 15V |
| Transmission frequency | 125KHz (EM) or 13.56MHz (MIFARE, ISO15693) |
| Sensing distance | 125KHz: Up to 7cm, 13.56MHz: Up to 5cm |
| keyboard | Touch buttons |
| Shell material | ABS (UL 94V-0) fully waterproof |
| Waterproof and dustproof level | IP65 |
| Dimensions | 125(H) x 80(W) x 22(D) mm |
